Narrowline latch - 4 panel - mid 1990's?

A quick learner from New Jersey says:
April 17, 2017
Hi - I can't find any latch that matches what we have. Everything available seems to have a reach out latch that extends into the jam. Our door slides inside one of the stationary panels and latches to the interior of that fixed panel. Do to salt air, everything is corroded quite a bit and should be replaced, but I haven't seen anything like this anywhere on line - except the handles. Help?

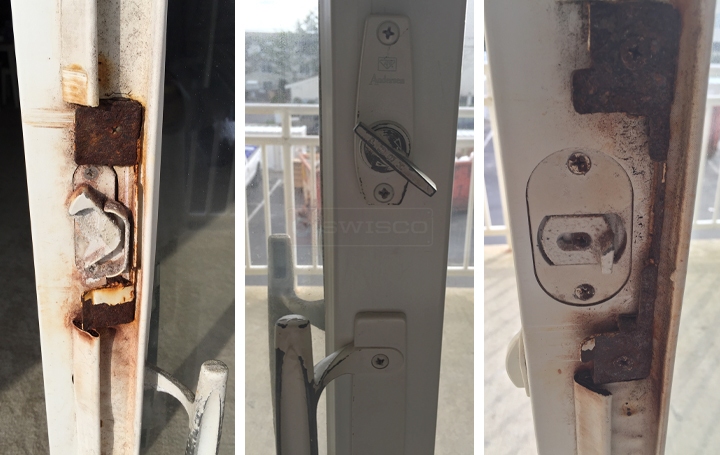

User submitted photos of patio door hardware.
Profile picture of Tom
Tom from SWISCO responded:
April 20, 2017
Thanks for posting. Start by looking at our 82-049 latch, 82-056 lock bolt, and 82-048 latch mechanism. Could be this hardware be what you're looking for?
A quick learner from New Jersey says:
April 20, 2017
Thanks!

Yes - looks just right!Are those really rusted out "flanges" available as well?
Profile picture of Tom
Tom from SWISCO responded:
April 21, 2017
Oh, sorry about that. How about our 82-058 and 82-057?
A quick learner from new Jersey says:
May 17, 2017
Hi

So all this worked very well. Thanks! I also ordered 2 door handles for this door (88-014 and 88-013). The interior handle is perfect, but the exterior handle does not fit. The one it needs to replace does not have a full plate that receives the bolts. Rather, it has 2 offset "tabs" that move the handle further away from the glass as well as further away from the locking jamb. Should I get another picture of that one?

Thanks again
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 23, 2017
Sorry to hear you're having trouble. I wonder if you have an older version of the Andersen patio glass door handle. Can you show me a clear picture of the outside pull?
A quick learner says:
May 23, 2017
Hi

I will get a clearer picture this weekend. This is a picture I found on google(I think from your website, that is very similar EXCEPT it does not have that flat bar.
Profile picture of Tom
Tom from SWISCO responded:
May 24, 2017
Great! Let me know whenever you can.
Andersen Lock Bolt Assembly, PS 3 Panel
Andersen Lock Bolt Assembly, PS 3 Panel
82-056
$33.47
Andersen Latch Mechanism, PS 3 Panel
Andersen Latch Mechanism, PS 3 Panel
82-048
$47.40
Andersen Thumb Latch, 3 Panel
Andersen Thumb Latch, 3 Panel
82-049
$67.40
Andersen PS 3 Panel Interlock Bracket
Andersen PS 3 Panel Interlock Bracket
82-058
$10.93
Interlock Bracket, Operating/Meeting Stile
Interlock Bracket, Operating/Meeting Stile
82-057
$5.97
Andersen Interior Pull Handle, 5-1/2"
Andersen Interior Pull Handle, 5-1/2"
88-013
$37.95
Andersen Exterior Pull Handle, 5-1/2"
Andersen Exterior Pull Handle, 5-1/2"
88-014
$37.95
