Need Help with Parts Identification

A landlord from USA says:
I need help identifying the correct balancer and pivot bar parts for 2 separate homes. In one home, I have three windows that need new left/right balancers on the upper sashes. The current balancers look to be the same for all three sets of windows, however, two sets of windows are slightly larger than the first set, so probably heavier. In the other home, I need a set of pivot bars for a completely different window.

I've attached pictures to help. Here is a description of the attached photos:

20140925_120906.jpg: the front of the broken balancer (for one of the larger windows in home# 1)
20140925_120929.jpg: the back of the broken balancer (for one of the larger windows in home# 1)
20140910_172852.jpg: a good balancer (for one of the larger windows in home# 1)
20140910_172921.jpg: the pivot bar that inserts into the balancer for one of the larger windows (in home# 1)
20140905_154843.jpg: label on the inside upper frame of one window in home# 1 (not the larger windows)
20140910_164739.jpg: another label on the inside upper frame of one window in home# 1 (not the larger windows)
20140910_173009.jpg: label on the inside upper frame of one window in home# 1 (on the larger windows)
20140910_173015.jpg: another label on the inside upper frame of one window in home# 1 (on the larger windows)
20140907_202220.jpg: a bent pivot bar, seems to be approx. 3", in home# 2 (the other pivot bar for this window completely broke)

All of the windows are double hung, tilt-out windows.

Please let me know if you need any additional information. Thanks in advance for your help!

--
Best Regards,
Melinda

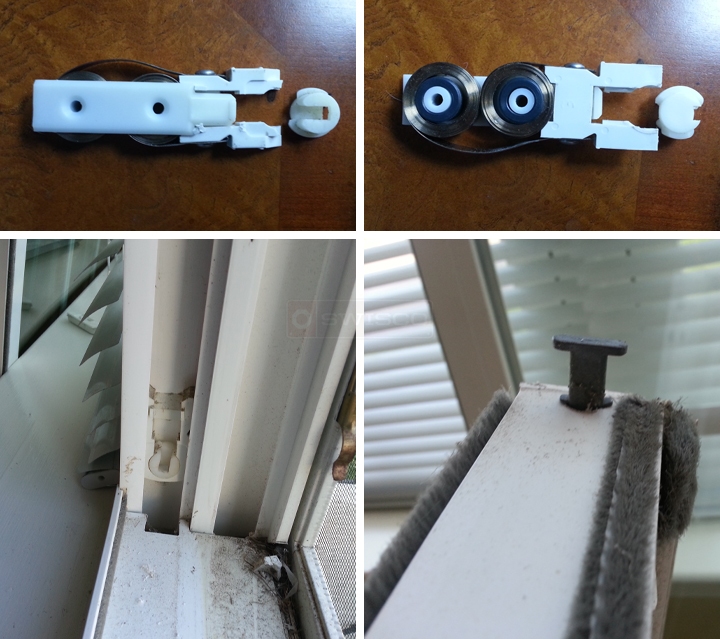

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. I think you should look at our 15-180 pivot shoe and 26-378 pivot bar. Just make sure the dimensions for these parts match your own hardware. This is very important so try to measure as carefully as you can.
