Need Replacement for Daryl Lock mechanism for sliding door

A home owner from Hamilton, Ohio says:
Need the locking mechanism for a sliding glass door that is in good condition but no name on it. Locking mechanism says

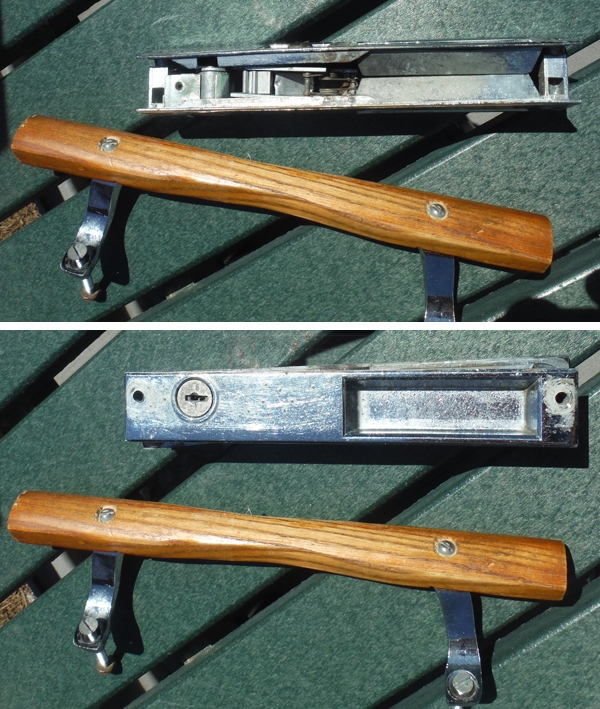

User submitted photos of patio door hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. Could we possibly see a picture of the inside portion of this handle set? That would be a huge help. In the meantime, look through our patio door lock section and see if you can find a possible match here.
A handy person from Hamilton, Ohio says:
I have now enclosed "inside view." Just two photos the same with different lighting. The locks look close but measurements are slightly off. Sliding door works well. Inside of this lock looks like piece(s) are broken off.
Thanks, Tom

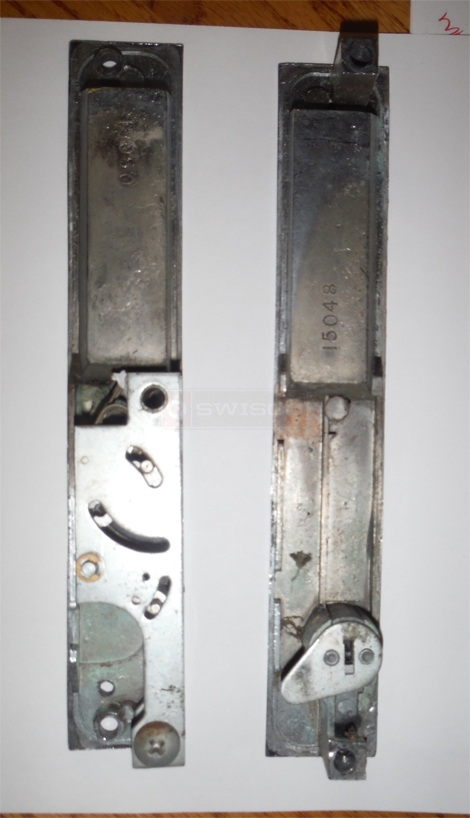

User submitted photo of their door hardware.
Profile picture of Dave
Dave from SWISCO responded:
That picture is a huge help, thank you! You have an old style Daryl PM II handle set from back in the 1960's. I don't believe it's available anymore. That said, one thing I've done in the past was to make up an aluminum plate to cover the cut out in the patio door. Then, I installed a surface mounted handle set like our 82-005 as a substitute. What do you think?
