Need a coil

A quick learner from Stillwater NJ says:

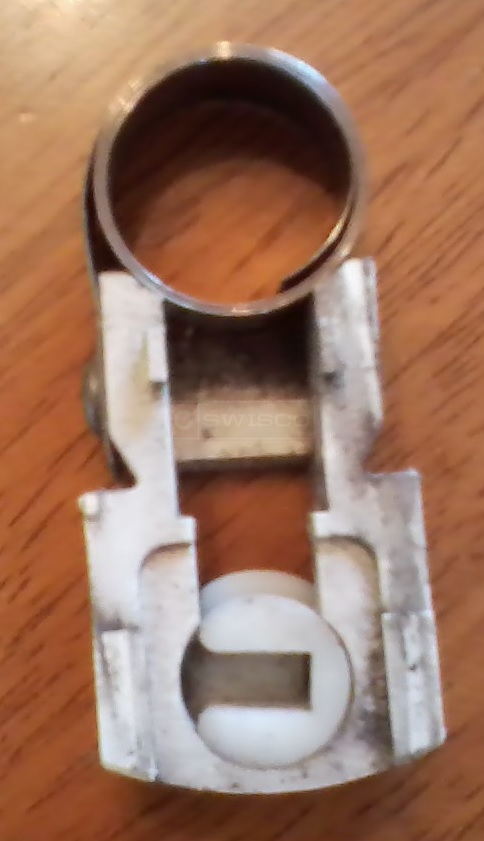

Hello! I hope you can help. I need to replace the coils in a vinyl tilt wash window. I was hoping to buy the coil itself only, as that's really the only broken part. There is a number 7 stamped on one of the coils. That's really all the info I have on identifying this thing. I will attach a photo as well. Please let me know if this is available from you.

With a very heavy window

Rich
coil balance shoe
Profile picture of Paul
Paul from SWISCO responded:
Hey, Rich. Please see our 15-180 pivot shoe and Series 190 coil spring. I believe you'll find these match quite well. With a "7" stamped on the old spring, I think our S190-740 is what you want.
A quick learner from Stillwater NJ says:
Thank you!!! I see how to attach the end with the screw in it. However is it easy to attach the other end to where it needs to go??

Thanks Again

Rich
Profile picture of Paul
Paul from SWISCO responded:
Sure, replacing this kind of balance system is fairly straightforward. Check out the video below. The specific balance Series is different, but the principle is more or less the same.
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
