Need help with many old parts

A home owner from USA says:

February 2, 2017

Hi - I need some help with quite a few parts

'Firstly I am looking for about 6 take out clips - I assume they are pretty standard ?

Then, I need quite a few channel guides the interior width looks like 7/8 inch - here are some pictures - do you think you can help me locate these ? Some pictures attached For the top I need 8 of these

Finally, I need the channel locks - non tilting windows. They are stamped 2920 BS1 - metal part os 30 inches long, they look like 5/8 inch wide and 7/8 inch deep. I don;t know how many of these each window needs - 2 for the bottom window and 2 for the top ? Is so I am looking for 9 of these, if only 2 per window 5

Also - it looks like there are some large rubber stoppers at the top of the windows - 7 of them

Can you help me find these parts ?

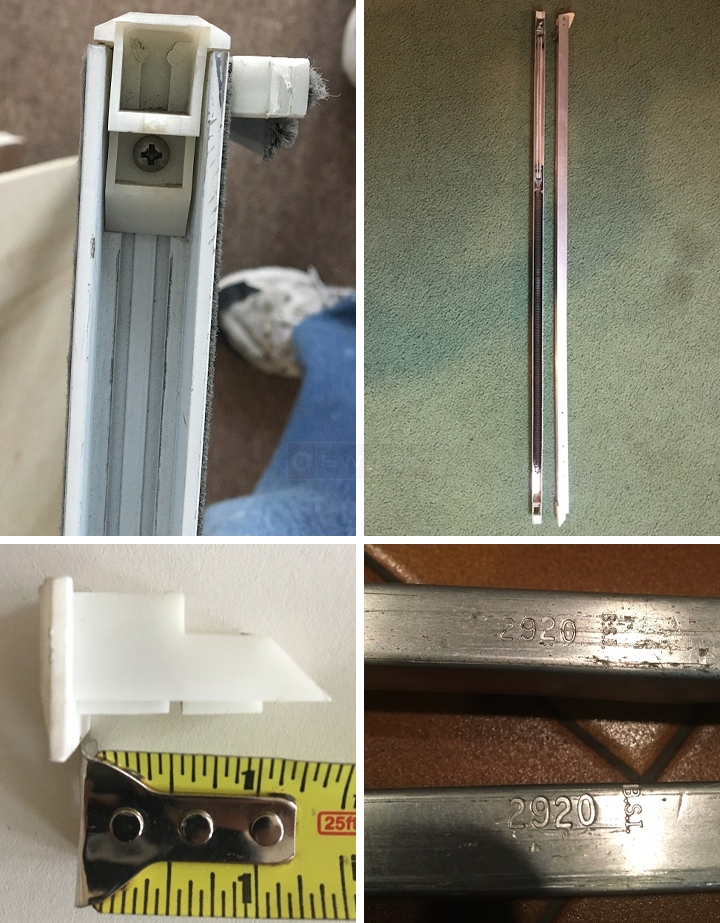

User submitted photos of window hardware.

Paul from SWISCO responded:

February 8, 2017

Thanks for posting. Most take out clips are fairly standard, yes. See our 16-002. There's a good chance this is what you have. As for the top sash guide, see our 18-033. Finally, for the balance, see our S390-30. I believe this is what you have.

I'm not sure about those rubber stoppers you've mentioned. Could it be something like our 59-001?
