Need new window counterbalance
A quick learner from Salem oregon says:
April 15, 2014

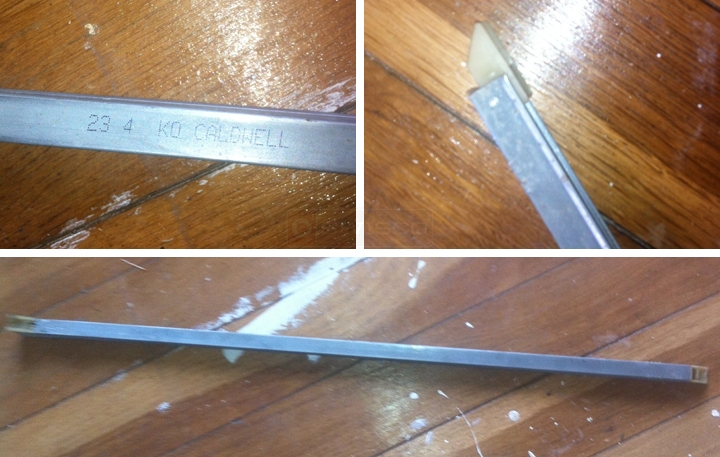

From plastic end to plastic end it is 25". It has 23 4 ko Caldwell stamped on it. And then I think it is 9/16 x 5/8.
Tom from SWISCO responded:
April 16, 2014
Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 351 or our Series 390 balances.
Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 351 uses the 15-002 while the Series 390 uses the 15-001. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
