Need replacement channel balance 13 2 GW CMC 10

A home owner from San Jose says:
The window is a Philips 800 series vinyl window. It has the following printed on it 13 2 GW CMC 10. It measures 1/2" x 14".

Will 14" Series 380 Channel Balance work?

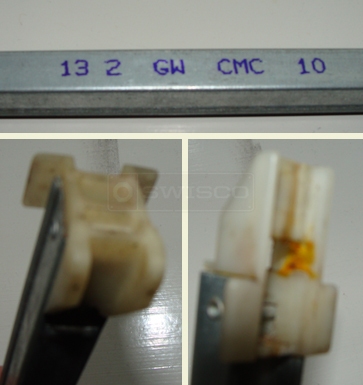

User submitted picture of channel balance Philips 800 vinyl 13 2 GW CMC 10.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Before I can confirm or deny the applicability of the Series 380 Channel Balance as a replacement, I will first need to identify your bottom shoe.

Please refer to the following chart and pick out the shoe that most closely resembles your own sample. From there, we can work on selecting the best possible replacement for your hardware.
A SWISCO guide to identifying balance shoes.
A home owner from San Jose says:
Yes, my attachment have wings, and the width is 1 3/32".
Profile picture of Tom
Tom from SWISCO responded:
Thank you for the in formation. It looks like you have our S385-14. Please take a look and see what you think. For this channel balance, you would want the 1320 stamp option.
