Need replacement for this kind of pivot bar

A home owner from California says:
I looked over the web page and could not find on my own one that matches exactly with my broken ones. Do you have any recommendation? Thanks.

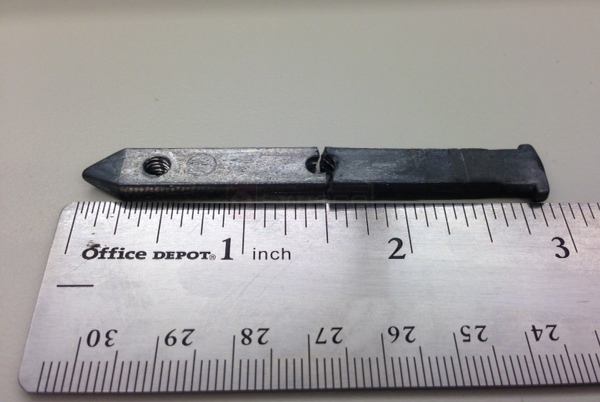

User submitted a photo of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
You might want to consider our 26-272. Check it out and let me know if you agree!
A home owner from California says:
Thank you, Paul.
I took a look at 26-272 and seems the hole at 1 3/8 to the rear might work. But not sure about the other hole on my model. Is the ellipse on 26-272 near the head a hole or not? If yes, what is its meature/position?
Thanks.
Profile picture of Paul
Paul from SWISCO responded:
Well, not every hole has to match, just the one you use. Which hole does your pivot bar use for installation?
A home owner from California says:
Both. If only one used, it will be loose.
Profile picture of Paul
Paul from SWISCO responded:
Well, the backset of the oval hole in the 26-272 is approximately 2-3/8". However, since its oval there is a little play. What's yours?
A home owner from California says:
I think it is at about 2-7/16''. So 26-272 should be a fit? Thanks.
