Need replacement part for "13 3 DU CMC 2"

A quick learner from San Jose CA says:
Hello, I have a broken channel balance that has the signage "13 3 DU CMC 2" (pictured).

What is the best replacement part for this? The channel length is 14", and width is 9/16".

Both end parts have "wings"

Thanks!
Vega in San Jose

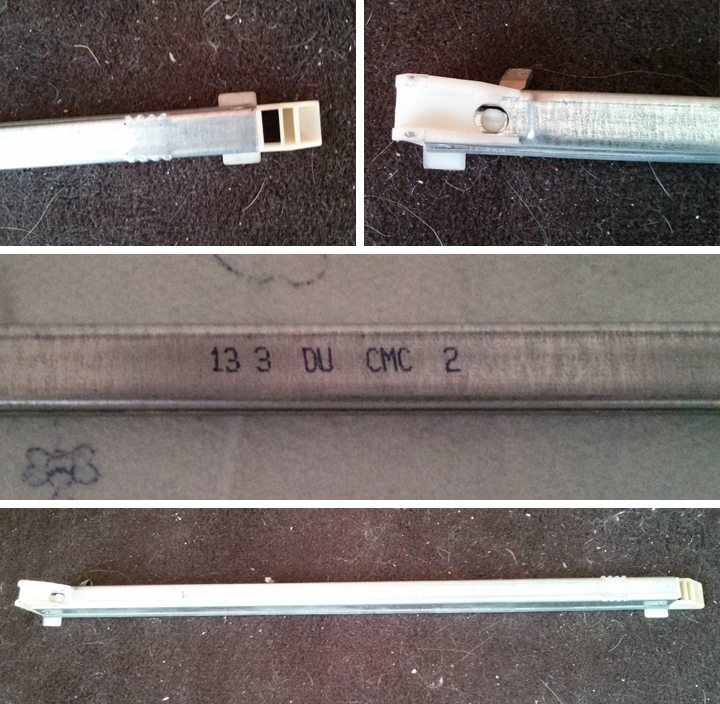

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Before I can offer an applicable replacement for this channel balance, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?
A quick learner from San Jose CA says:
It looks like it's closest to 1 3/32".
Profile picture of Tom
Tom from SWISCO responded:
Great. In that case, check out our S385-14 channel balance and see how this matches up to your hardware.
