Need replacement pivot bar, 9749

A home owner from East Rutherford, NJ says:
I'm looking for replacement pivot bars. I do not know the manufacturer and there are no identifying marks on any of the windows. The only markings are on the pivot bars themselves, but my searches have turned up with nothing. The number on the pivot bar is "9749". The pictures I took aren't the greatest and are a little deceiving. I will list the measurements of each picture below;

1.jpg - 3" in length

2.jpg - 9/32" wide

3.jpg - 3/8" "pivot point"

4.jpg - 2" to the only hole

I forgot to take a picture of the thickness, but it's measured in at 3/16".

Any help would be greatly appreciated!

Thank you in advance!

Steve

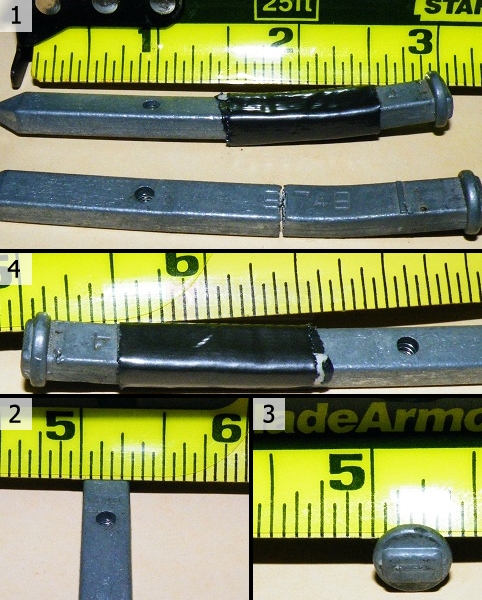

user submitted pivot bar images
Profile picture of Mike
Mike from SWISCO responded:
Thank you for submitting the photos.

Please take a look at the Swisco 26-226 Pivot Bar.
A home owner from East Rutherford, NJ says:
Thanks you so much! I'll finally be able to open my windows again!
Profile picture of Mike
Mike from SWISCO responded:
You're welcome!
A quick learner from Pittsburgh, PA says:
I have the same window with the same part broken the same way. The 26-226 will work, however, the hole in the window frame will not match up with the hole in the pivot.

All I did was drill a new hole in the frame to match up with one of the holes in the pivot and it worked just fine.

Peter
