Need to find replacement for old casement window operator and lock

A home owner from OAK PARK, MICHIGAN 48237 says:

January 4, 2015

So I just bought this house that was built in the late 1950s. There are approximately 20 casement windows, all of which are either broken or beat up. I'd like to replace but am having trouble finding them at a local hardware store. Can you help me identify the part name and provide a link if you sell it?

There is a stamp on bottom of the crank mechanism- 4 -200 LH. I have two more images, but the system only allows me to upload five. If you need me to send the last two let me know.

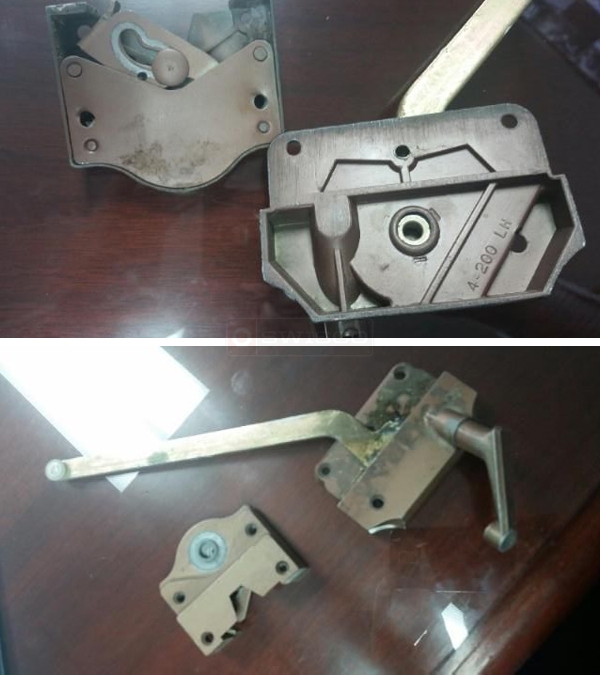

User submitted photos of a window operator.

A home owner from OAK PARK, MICHIGAN 48237 says:

January 4, 2015

Last two images....

Dave Sr. from SWISCO responded:

January 7, 2015

You have old Andersen window, I think from the early 1960's. We do not carry an exact replacement for it, unfortunately, and I'm not even sure if Andersen can still supply them. I have a few suggestions that could work with a little retro fitting on your part, however. Take a look at our 39-094 and 39-095 operators. For the locks, you could consider our 38-056 and 38-057 along with 38-136 keeper, or perhaps the 38-097 and 38-098 along with the 38-079 keeper. Take a look and see what you think.

A home owner from Grand Rapids, MI says:

June 28, 2015

Any feedback on the results? I have the same windows and would like to know if the suggested parts worked.

Andersen Straight Arm Operator, 9 3/8" Arm

39-094

$99.97

Andersen Straight Arm Operator, 9 3/8" arm

39-095

$99.97

LH Casement Lock, Andersen

38-057

$39.55

RH Casement Lock, Andersen

38-056

$39.55

Andersen Casement Lock Keeper

38-135

$3.97

LH EntryGard Sash Lock

38-097

$12.05

RH EntryGard Sash Lock

38-098

$12.05

Casement Sash Lock Keeper

38-079

$1.92
