Need to replace adjustable and non-adjustable roller assemblies for Arcadia patio door(s)

A handy person from New Orleans says:
I am attaching some photos of two assemblies which require new rollers or replacements. The roller assemblies are simple 1 3/4" x 1/2" ball-bearing nylon rollers which are mounted in u-bracket frames. The adjustable roller assembly is attached with a #10 screw but the front non-adjustable assembly has the same u-bracket welded to the locking frame/tab.

Please feel free to email or call with any advice or if you have suitable parts for these pre-1960 Arcadia doors.

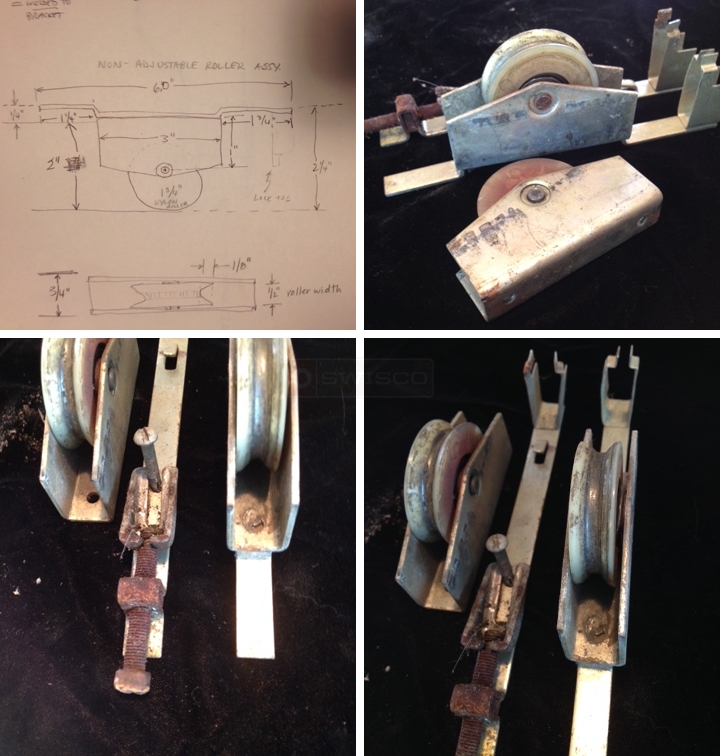

User submitted photos of patio door rollers.
Profile picture of Dave
Dave from SWISCO responded:
I don't believe this roller is available any longer. You say it's from Arcadia. Many of Acadia parts are unusual and in some cases, like yours, they're very hard to come by.

You may want to take a look at our 84-074N. This may work for you. You would have to install a hole in your patio screen door for the adjustment screw, which is at the top of the roller housing. Your adjustment screw looks like it is on the end of the housing. What do you think?
