Obtain right triple coil balace

A quick learner from New York says:
August 4, 2017
Your video helped me to remove the part. My wife Dow weighs 30ibs. Which triple cool of the series 140 do you think is best?

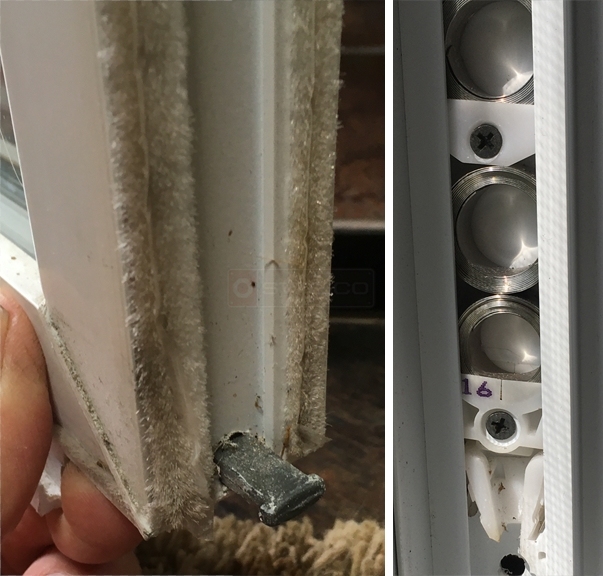

Coil assembly
Profile picture of Paul
Paul from SWISCO responded:
August 8, 2017
It looks like the number 16 is printed on your old balance, so I would recommend our S140-16. This only has two springs, but based on that "16" on your balance they should support the same amount of weight. You can always weigh your sash to confirm; as long as your sash weighs 31 through 32.99 pounds, you should be okay.

Another thing to keep in mind is that your pivot bar will not work with any of our Series 140 balances. I recommend considering either our 26-405 or 26-398. Look over our measurements for these two pivot bars to confirm the better match.
A quick learner from New York says:
August 9, 2017
If my pivot bar will not work on your coils, how do I replace a pivot bar? Or do I look for a replacement coil that will fit my pivot bar?
Profile picture of Tom
Tom from SWISCO responded:
August 11, 2017
I would look at the two pivot bars Paul recommended to see if either of their measurements match up to what you have now. If they do then you can probably replace your old pivot bar with one of them.
16 lb Series 140 Quick-Tilt, Dual
16 lb Series 140 Quick-Tilt, Dual
S140-16
$12.97
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
