A quick learner from USA says:
I believe Alside/Associated Materials UltraMax vinyl, double-paned windows were installed circa 2000 throughout my house. Several of the coil balance shoes are broken and one of the pivot bars is broken. I believe I have identified the necessary repair parts, but would like some confirmation before placing an order. My questions are:

Will the pivot bar 26-226 work with the 15-175 coil balance shoe? The width of the metal cam slot is not provided in your information, but I assume it will accommodate the 3/16

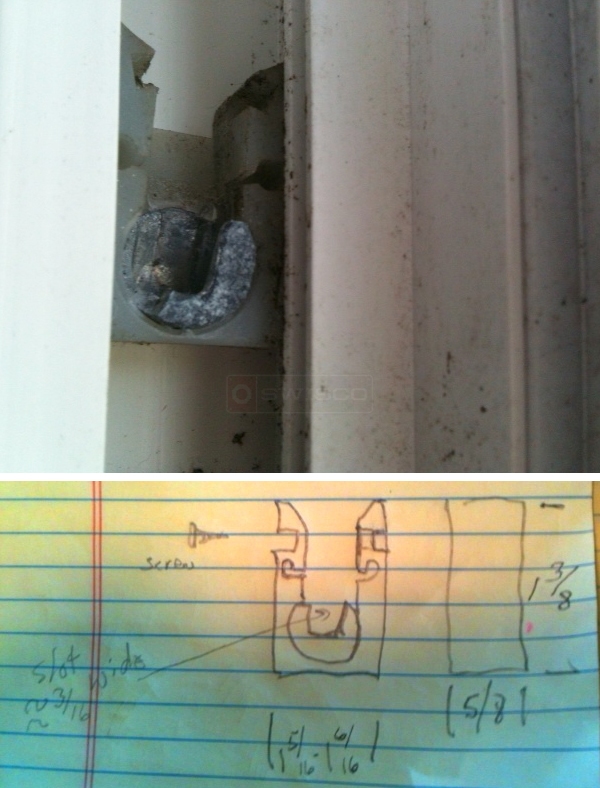

User submitted photos of a balance shoe.
Profile picture of Paul
Paul from SWISCO responded:
Yes, the 26-226 pivot bar will fit the 15-175 balance shoe. The coil springs will be our Series 152.
