Patio door latch

A handy person from Pleasanton, CA says:
Hello.

Please tell me the correct part number if you can.

I have attached my dysfunctional patio door latch photo

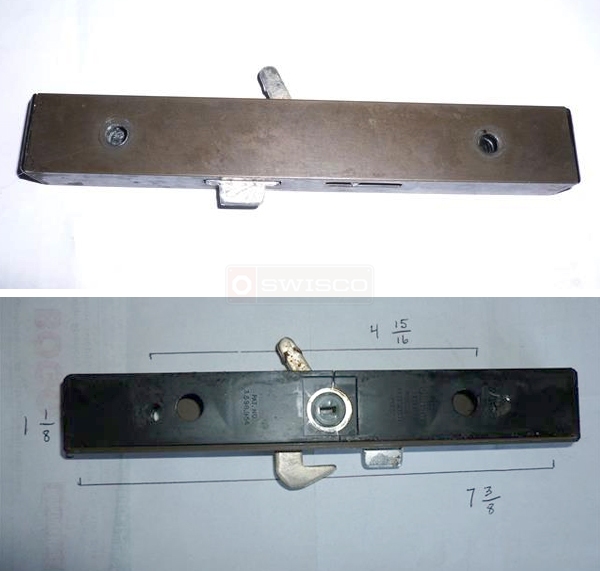

User submitted photos of a patio door lock.
A home owner from USA says:
Please tell me the correct part number if you can.

I have attached my dysfunctional patio door latch photo
Profile picture of Paul
Paul from SWISCO responded:
Looks like your photos are showing the inside plate of our 82-005 handle set. Check it out and see if you agree.
A handy person from Pleasanton, CA says:
Yes that's it I just ordered! Thank you very much! '
A handy person from Pleasanton says:
Paul my handle was the incorrect order. My latch does not have the handle attached like 82-005. Do you have another latch in mind? Thanks!
Profile picture of Dave
Dave from SWISCO responded:
Would it still work even with the pull? This is the only type of handle we have in this style with 4-15/16" hole spacing. Why won't it fit? I can't think of anything that would get in the way of the handle. Is it not lining up with the keeper?
A handy person from Pleasesanton says:
I was able to make it work. I removed the clip holding the latch together. That allowed me the reverse the hook. I was able to cut off my existing handle and use the remnants for a spacer. Now it works perfectly!
