Pella Awning Window Hinge Arm and Slide

A purchasing agent from Fairfax, VA 22032 says:
Can you identify the hinge arm in the attached photo. We need (1) RH and (1) LH please.

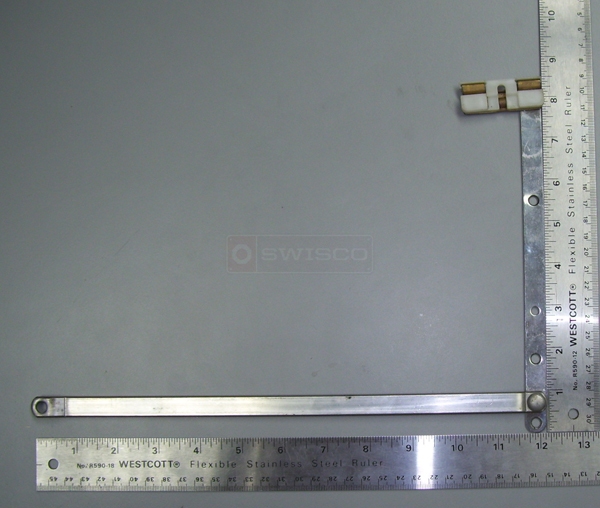

User submitted a photo of a window awning hinge.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Could you give me the length of the arms? It looks like the bottom one is a little over 12" and the top one is maybe over 8", but I can't see what the exact measurements are. Let me know and we can work from there!
A purchasing agent from Fairfax, VA 22032 says:
The bottom arm is 12-1/8" overall (11-3/4" on center)
The right hand arm is 8-3/16" overall (7-3/4" on center for outside holes, 7-1/4" to the holes the long arm is riveted to. Thank you for any help you can provide.
Profile picture of Tom
Tom from SWISCO responded:
Great! Thank you for the additional information. We are currently working on a possible replacement and will let you know as soon as we have something for you to look at.
Profile picture of Donna
Donna from SWISCO responded:
Thanks for your patience in this matter. Please see our new 39-396 & 39-397 and see if these are what you were looking for.
