Pella Pivot Plate Hinge Shoe

A home owner from USA says:
I am in need of an older version of the
Pella Pivot Plate Hinge Shoe
From about 1980 time frame. The part I found on your site,39-363, looks very similar but mine had 2 circular bump outs that marry up with the holes in the part attached to the window
See the attached photos 1468 & 9

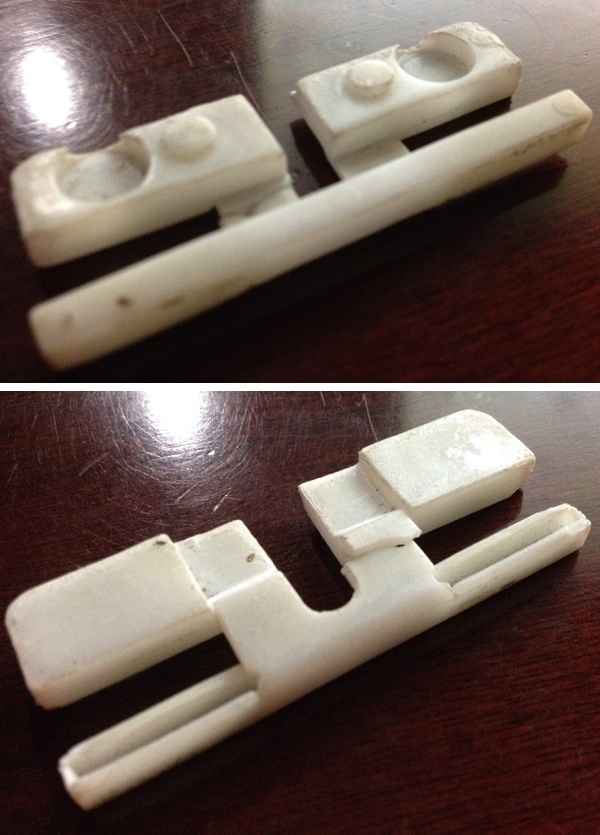

User submitted photos of a pivot plate hinge shoe.
Profile picture of Dave
Dave from SWISCO responded:
I'm not sure about those two bumps, but our 39-363 does appear to have the same holes. How do the dimensions match?
A quick learner says:
The bumps are the important part since they marry up with the wholes on the part attached to the window. I was thinking that I may have to buy the whole hinge assembly but was hoping I could get the part....
Profile picture of Dave
Dave from SWISCO responded:
I see what you mean. This guide is used on our 39-351 and 39-352. Do they match your original hinges? If not, you may need something else.
