Pella Storm Door Handle

A quick learner from Jacksonville, Texas says:
I received the 40-193 : Pella Storm Door Mortise Handle Set yesterday and
the one I have on my doors has a bigger base set.

It is 9 7/8 tall and 1 7/8 wide. I have not taken the set out of the
packaging but it measures a little over 8" tall and 1 1/4 wide.

Do you have a handle set with those meauresment.
Profile picture of Tom
Tom from SWISCO responded:
Can you show us a few pictures of your original handle set? Can you also confirm the other dimensions, as compared to the 40-193? Thank you!
A home owner from Jacksonville, Texas says:
Dimensions are 1-7/8 x 9-7/8.

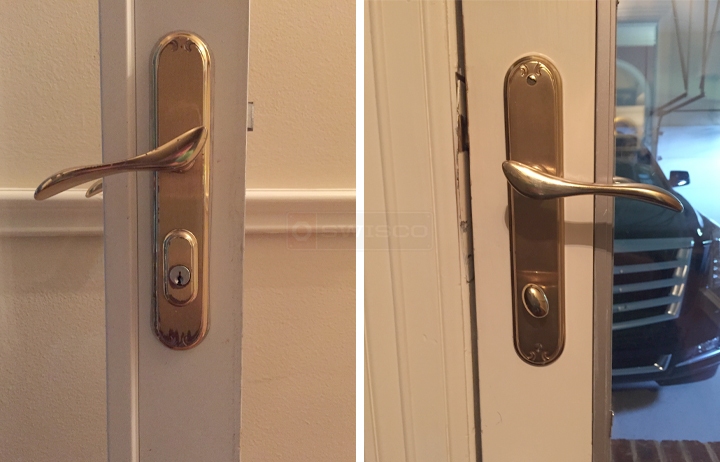

User submitted photos of a storm door handle set.
Profile picture of Tom
Tom from SWISCO responded:
Thank you again for your patience. We're having trouble with this. We may need some more information. First, can you tell me the distance between the installation holes, measured center-to-center? Could you also show me a clear picture of the inside mortise lock? If there's any way we can see the mortise lock removed from the door, that would be a huge help. Thank you!
A home owner from Jacksonville, TX says:
Apologies for a late reply. I have attached the requested pictures. Thank you.

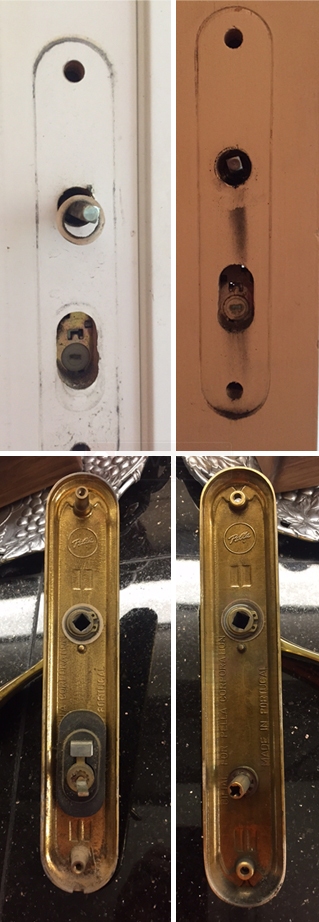

User submitted photo of their door handle.
Profile picture of Dave
Dave from SWISCO responded:
Your handle set does not look familiar, I'm afraid. If possible, please take a look at our 40-211 handle set. Does this one match up to your handle and mounting hole centers?
