Philip single hung Window tilt latches

A home owner from USA says:
Philip single hung Window tilt latches replacement part - your 26-193 & 26-194 Rollyson Tilt Latches. Will these work if mine measures 3 inches? I do not want you order them if they will not work. I have already checked Menards. They actually recommended to check online. They did nothing that I would find in any other local hardware or number store in my local area. These windows are at least 20 years old.
Profile picture of Dave
Dave from SWISCO responded:
To help us identify the correct replacement hardware for your application, please upload a few photos of your original hardware.
A home owner from USA says:
Please see attached photos.

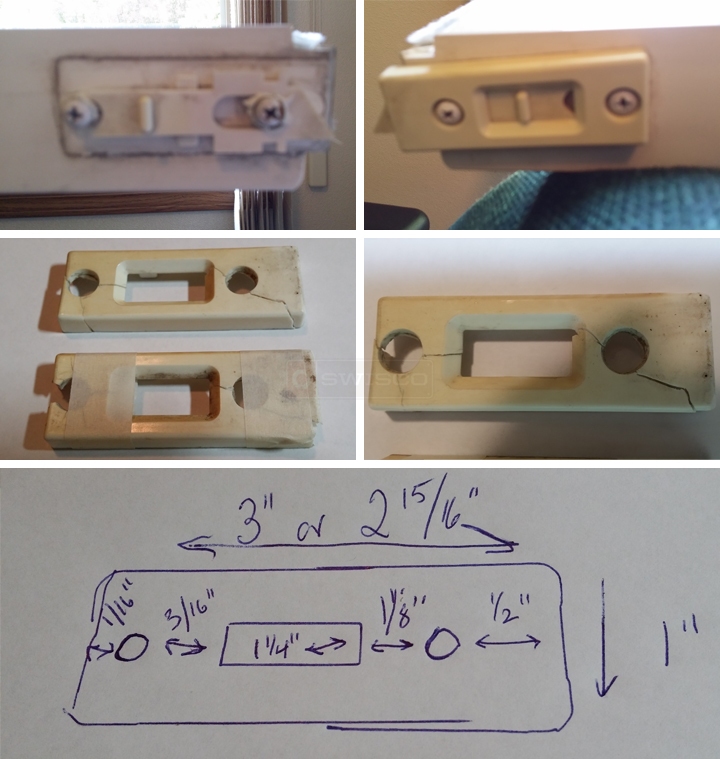

User submitted photos of a tilt latch.
Profile picture of Tom
Tom from SWISCO responded:
It's hard to say. You're missing the key measurement, which is the distance between the screw holes. Can you confirm what that measurement is? Make sure to measure from the center of each hole, not from the edges. In the meantime, look at our 26-337 and 26-344 and see if either of these can work.
A quick learner from USA says:
I have measured the distance between the center of each hole and came up with 2" and from the center whole to the edge came up with 3/4". Appears I would need to try ordering 26-344. Do I need anything else to replace them? The screws are still on the window. A couple of springs have popped out. Pretty much just the plastic cracked from the sun. I assume I can just go to the link you provided to order. Just let me know if I am needing anything else.
Profile picture of Tom
Tom from SWISCO responded:
Nope, that's it! You can re-use your old screws, and all orders can be placed on our main site, like you thought.
