Philips Products 1054 sliding glass door

A quick learner from Meridian, ID says:
Hello, I could use help on finding and installing a broken latch on this older door. It looks as though the mortise lock is recessed enough within the vinyl trim it may be difficult to get out. Can you help? Thanks!

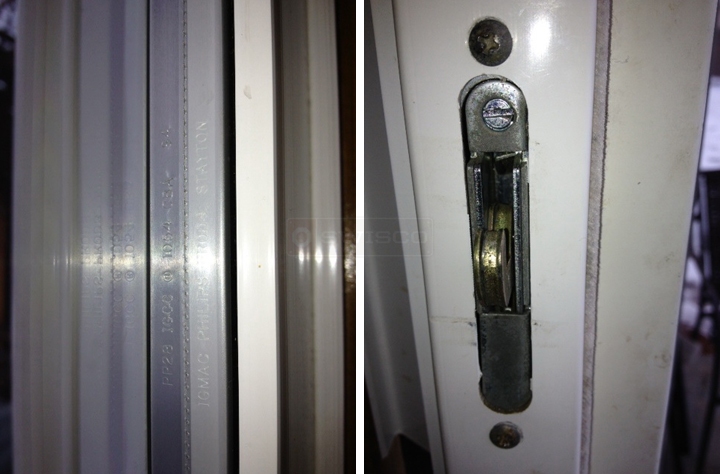

User submitted photos of sliding door hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting! This appears similar to our 82-218 Mortise Lock. Take a look and let me know if the dimensions line up. As for replacement, take a look at our handy tutorial video on how to install out this kind of hardware.
A quick learner from Meridian says:
The measurements of mine on screw centers is 3-12/16 or 3 3/4 in. Do you think it would fit?
Profile picture of Tom
Tom from SWISCO responded:
Considering the same measurement on our 82-218 is 3-11/16", I think it still may be the one you want. I can't imagine that the manufacturer would develop a different mortise lock with only 1/16" of a difference between itself and the 82-218. Double check your measurement just in case, and make sure that you're measuring from screw hole center to screw hole center.
