Pivot Lock Shoe

A home owner from colts neck, nj says:
November 23, 2016
Hello,
I'm looking for replacement of the pivot lock shoe. attached photos of existing shoe. The measurement is 9/16" D; 2 1/16" H and 1" W.

Thank you,
Paul

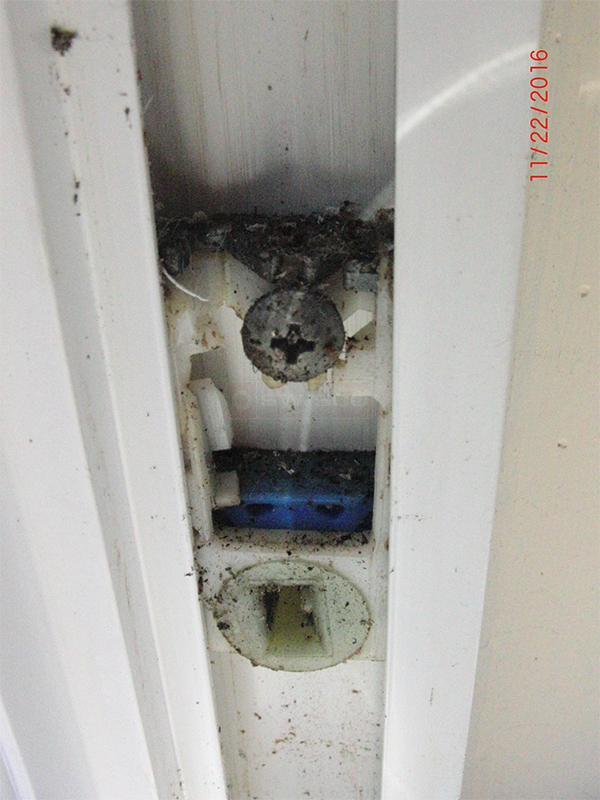

User submitted a photo of a pivot shoe.
A home owner from colts neck, nj says:
November 23, 2016
more information...

the shoe is for tilt single hung window. The spiral tilt balance is 5/8" dia.

the windows are about 22 years old.

Regards,
Paul

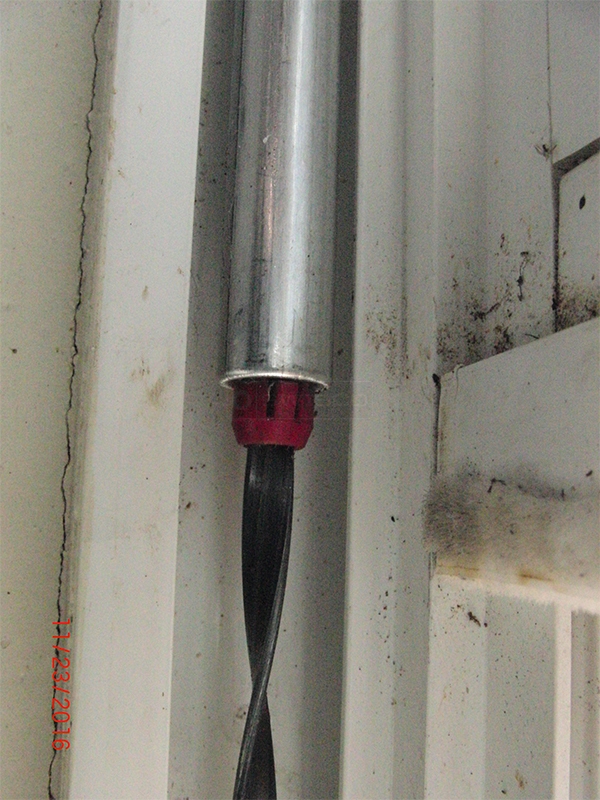

User submitted a photo of a window balance.
A home owner from colts neck, nj says:
November 26, 2016
I was able to remove the lock shoe and the CORRECT measurement is: 1 1/4" W; 2 1/16" H; 9/16" D. Attached are the photos.

Thank you!

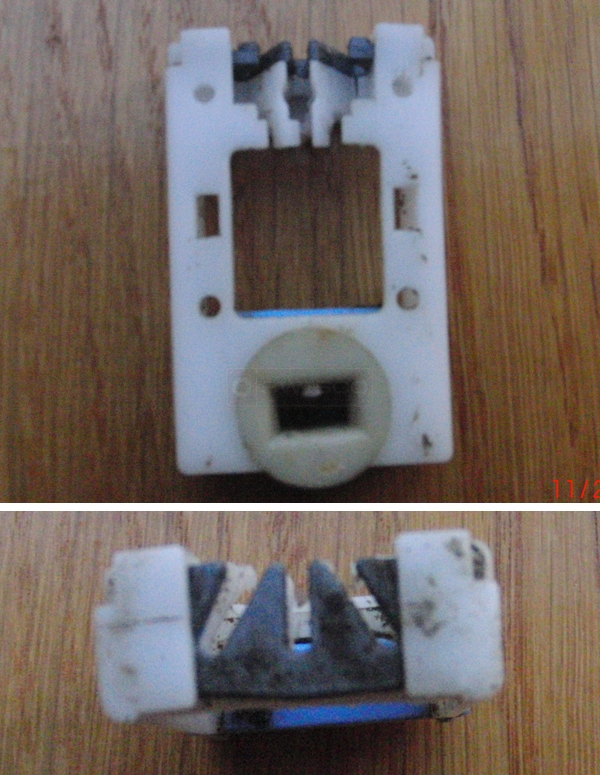

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
November 29, 2016
Thanks for posting. See our 15-118 and let me know if this would be a good match for your pivot shoe.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
