Pivot Pins 9762 1 and 9762 2

A home owner from York PA says:
Installed Original New in 1998 Paramount Vinyl Double Hung Tilt Windows then the Company sold out to Winco then to Jeld Wen. Jeld Wen Cannot help. Several Pivot Pins are broken. They are Zinc Die Castings with 1 3/8 to Centerline of first hole with casting # 9762 1 and 9762 2 depending if right or left side. We are not sure what remains in the sash. Can get more dimensions if you need them and also send you picture of the balances. Sale of home depends on replacing approx 20 pivot pins. Rush Help Please! I have person who will do labor if we have pins.
Rich

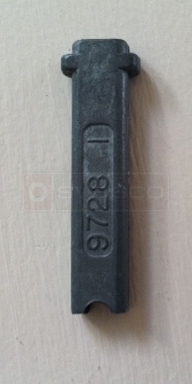

User submitted photo of pivot bar 9762 1/9762 2.

photo shows a broken pivot bar with the numbers 9728
Profile picture of Mike
Mike from SWISCO responded:
Thanks for posting, Rich.

Is there anyway you can get us a photo of an unbroken pivot bar?
A home owner from York PA says:
Thanks, Mike we can do that and will send you picture and full dimensions, but not until later this week. What is the likely hood that you will find an exact match?
Thanks, Rich
Profile picture of Mike
Mike from SWISCO responded:
We carry a lot of pivot bar replacements. We will have a better answer for you once we see the whole pivot bar.
A home owner from York PA says:
Here you go. My best guess is approx 3" long x 5/16" wide x 3/16" thk and is 1 3/8" from end to 1st hole and 1" from hole to hole. It is similar in style to 26-272. We have aslo a picture of the balance if needed.
Rich

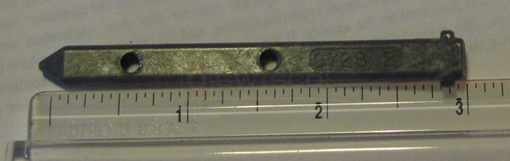

User submitted photo of pivot bar 9762 1.
Profile picture of Mike
Mike from SWISCO responded:
Rich, the 26-226 appears to be more like the needed replacement pivot bar.
A home owner from York PA says:
Mike, thanks the 26-226 looks like the best match except for the head of the pin that goes into the cam on the sash. I have attached a picture of the current cam lock. Can you email me the mating part # for 26-226 cam lock. Do you think I could make the 26-226 work in the current cam lock just from looking at the picture? What kind of labor and material costs might I get into to replace both? Do you think it's best to buy the 26-226 and give it to a window tech and have him make it work?
Thank you again, Rich

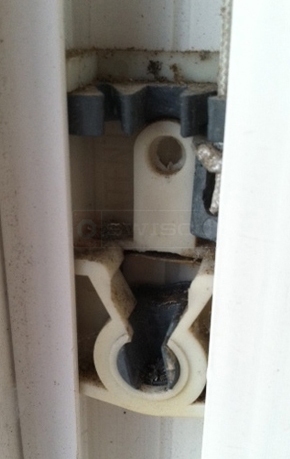

User submitted photo of pivot shoe.
Profile picture of Mike
Mike from SWISCO responded:
The pivot shoe looks like our 15-129 Pivot Shoe. I went and grabbed the 26-226 Pivot Bar and it seems to work well with the 15-129 shoe.
A home owner from Douglassville, PA says:
I have the exact same situation. Can you tell me if the 26-226 Pivot Bar worked as a replacement for the original pivot bar in this instance?
A home owner from Douglassville PA says:
Can anyone tell me if 26-226 will work as a replacement for the original pivot bar as was asked in this discussion?

http://www.swisco.com/discussions/Pivot-Pins-9762-1_9762-2-77-9638

I have the exact same windows and need to replace several of them.

Thanks
Profile picture of Paul
Paul from SWISCO responded:
The pivot shoe looks like our 15-129 Pivot Shoe, have you taken a look?

I tried the 26-226 Pivot Bar with the 15-129 shoe and they seem to work well together.
