Pivot Shoe Identification

A contractor from Champaign says:
I need help with this one. I've searched the website but have had no luck finding one that is similar. This is a coil balance pivot shoe.

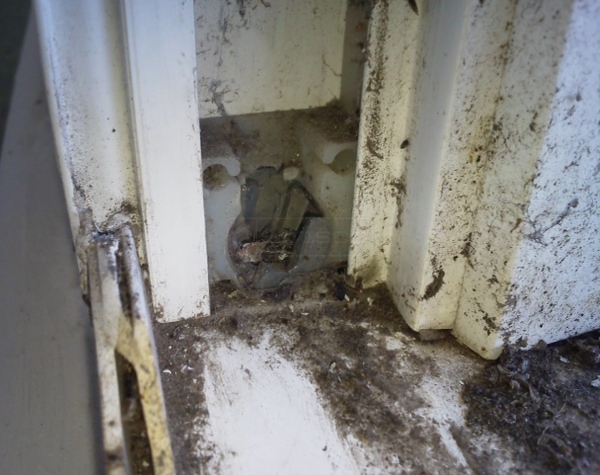

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
This looks similar to our 15-175 pivot shoe, but you will have to carefully compare the dimensions we show to your own hardware and see how well they match up.
A contractor from Champaign, Il says:
You guys are so awesome! Always a pleasure, thank you so much!
Profile picture of Paul
Paul from SWISCO responded:
The pleasure's all ours. If you need anything else, feel free to ask.
A contractor from Champaign says:
Hey guys I'm back with another question on this one. The 15-175 fit perfect but it was realized later that the coils are gone too. The sashes are about 34" tall and 29". What lb. coils should I use?
Profile picture of Paul
Paul from SWISCO responded:
I believe that the S152-6 and S152-7 springs can work for you, but just double check the markings stamped on your existing springs just to be sure.
