Pivot Shoe Info. Needed

A home owner from USA says:
I need (4) replacement pivot lock shoes. The dimensions are

1 3/16" wide
1/2 " thick
between 2 1/8" and 2 3/16" long

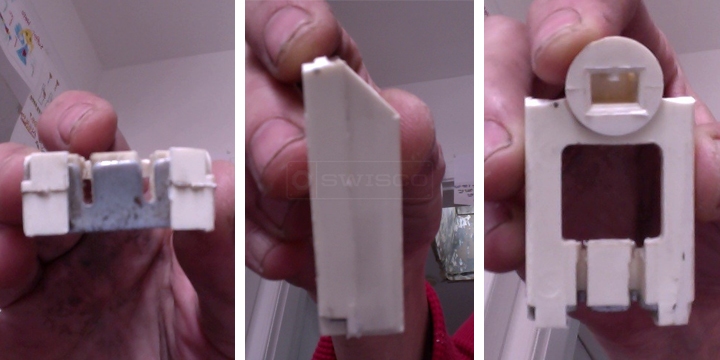

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! Can you confirm the width? I think our 15-046 is a possible match, but it measures 1-1/4" wide. Double check and see what you think!
A quick learner from Jersey City says:
Hello Paul:

It looks like 1 1/4" wide to me. The man at the glass store told me the other dimension.


Profile picture of Paul
Paul from SWISCO responded:
I can't really speak for the man at the glass store, but our 15-046 is 1-1/4" wide and 1/2" thick. If your shoe matches those dimensions, then I think it's a great place to start.
