Pivot Shoe from a Super Seal Replacement window installed in 2005

A home owner from Chelmsford MA says:
July 21, 2016
Need to know what part to order to replace this piece from a Super Seal Replacement window installed in 2005. I am very confused looking at the hundreds of different types.

Thanks Kathy

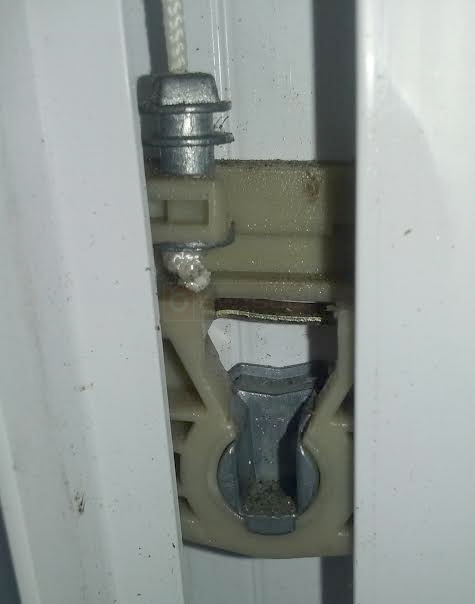

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
July 25, 2016
Hello, Kathy. I believe you can use our 15-216 as a replacement pivot shoe for your window. It is 1-1/4" wide and 1/2" thick. How does this compare to your own measurements?
A home owner from Chelmsford MA says:
August 2, 2016
Thanks Paul,
We have removed the broken shoe. it is 1/2" thick but measures 1-1/8" wide. here are clearer pictures of the shoe.

Thank you for your help
Kathy
A home owner from Chelmsford MA says:
August 2, 2016
Hi Paul.

Thank you the 15-216 looks perfect! just order a few.
Thank you again for your help!
Kathy
Profile picture of Paul
Paul from SWISCO responded:
August 3, 2016
Glad we could help! Let us know how this works out!
