Pivot lock shoe

A contractor from Waterman, Illinois says:
I have a survivor double hung 7100 window and the pivot lock shoe broke on the right side. The survivor people changed hands and say they don't have this part anymore. Do you know which one I need?
Profile picture of Dave
Dave from SWISCO responded:
Not familiar with the Survivor line of windows. If you can't pick out the part on the SWISCO website, send us a photo of the pivot shoe you need and we will research it for you.
A contractor from Waterman, Illinois says:
Reliabilt Survivor double hung vinyl replacement window size 48" W. X 67" H. Pivot lock shoe on the right side.

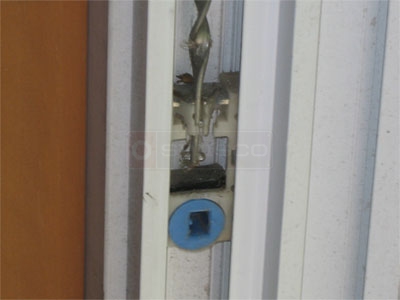

Customer image of their Survivor double hung window pivot lock shoe.
Profile picture of Dave
Dave from SWISCO responded:
I believe from your picture that your shoe is our 15-118 shoe, it measures 9/16" thick. Check to make sure.
A handy person from Waterman, Il. says:
Is there a left and a right side or do they work on either side?
Profile picture of Dave
Dave from SWISCO responded:
They are made for either side. Best to check if both are needed to be replaced.
A handy person from Waterman, Il. says:
I recently ercieved the new pivot lock shoe, how do I get it in to the track? I still have part of the old one in there too.
Profile picture of Dave
Dave from SWISCO responded:
Take a look at this Pivot shoe installation discussion.
