Please identify Channel Balance and Provide Quote

A handy person from California says:
I have not been able to identify the particular channel balance combination needed on your website. The top guide appears to be similar to the 19-002 model, but I have not found the correct bottom guide. Please refer to the attached images and the approximate measurements below.

Metal channel width: 5/8"
Metal channel depth: 5/8"
Metal channel length: 30 5/8"

Bottom guide width: 9/16"
Bottom guide depth: 1"
Bottom guide length: 1 7/16"

Top guide width: 9/16"
Top guide length: 1 1/4"

The window does NOT tilt.

Please let me know if I can provide you with any additional information.

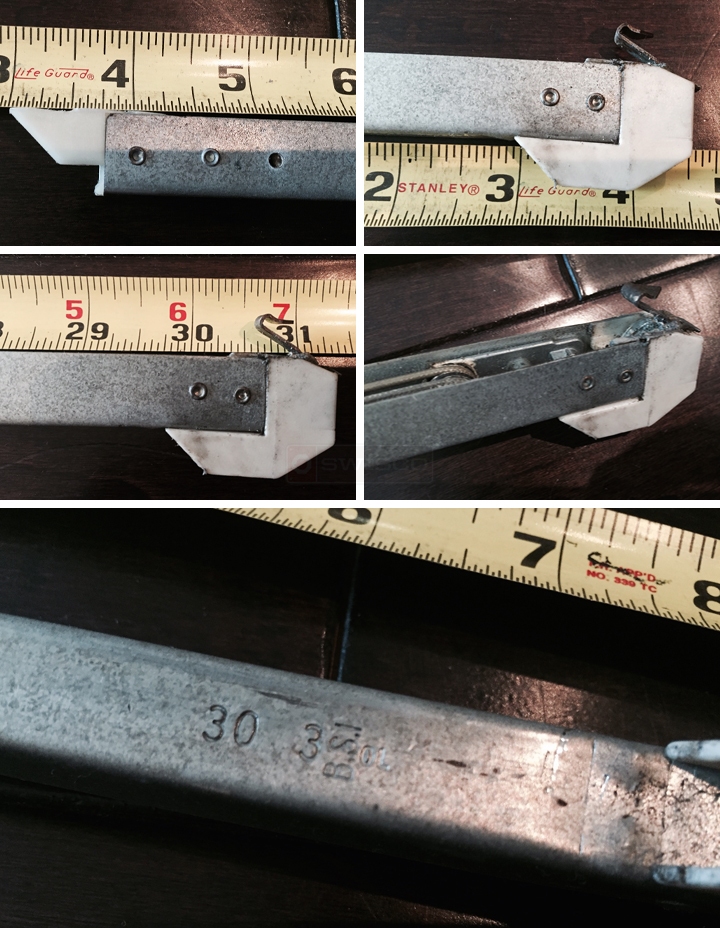

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
We should be able to help, yes, though this balance will have to be custom made. Before I begin, can you just tell me how many you need? That's the last piece of information we need. Your pictures were very helpful!
A handy person says:
Hello Tom,

Thank you for following up, I am glad to hear the information was helpful!

I need 6 of them (i.e. 3 windows), but I will consider ordering 8 so that I may have spares depending on the price. I will also need 2 take-out clips (metal version)

Best regards,
Profile picture of Tom
Tom from SWISCO responded:
Sure thing. I'll send you an order link for both 6 and 8, and you can decide from there.
