Plunger Pins Marvin Screens

A handy person from Sagaponack, NY 11962 says:
I'd like to try to replace the broken plunger pins on my Marvin screen windows. Before I order them, do you have a guide to help me? I'll need about 100 plunger pins.

Profile picture of Mike
Mike from SWISCO responded:
Please take a look at Swisco's plunger pin installation guide. Please let us know if you need help identifying the correct plunger pin replacement.
A handy person from California says:
I have Marvin screens also and went to the guide and it gave no help, and cant figure out what size to get.....
what do i measure to determine 5/32 or 7/32size??
thanks in advance
Profile picture of Paul
Paul from SWISCO responded:
Hey, Willy. You need to measure the diameter of the end of the pin.
A handy person from ohio says:
which end? The end that goes into the hole on the window frame is about 1/4" dia. is the length also important? i measured 1 5/8" long. I do not want to have to drill the screen frames. All i want to do is replace the spring pins. they are 19 years old, crumbling cheap crap. thanks.
Profile picture of Paul
Paul from SWISCO responded:

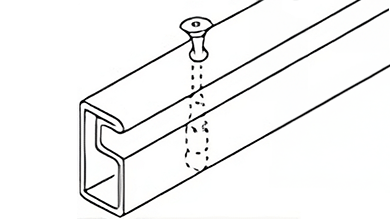

If the hole that the pin fits into is 1/4", then I recommend our 70-009 pull pin with a 5/32" head. You don't have to re drill, you can use the original opening. Your length should also be okay, as long as the screen frame is 3/4".
