Product Code 39-536 Pivot Slide Assembly (stamped 31878)

A home owner from Honolulu says:
I wanted to check one more dimension of my Pivot Slide Assembly (stamped 31878) before ordering. The dimension which matches the width of the track is 1.2 cm or 0.5 inches as shown in the attached photo. The other dimensions are 1 1/4" x 1 1/16" and 3/8" for the knob as shown in your photo for Product code 39-536.
Thanks for checking.
m

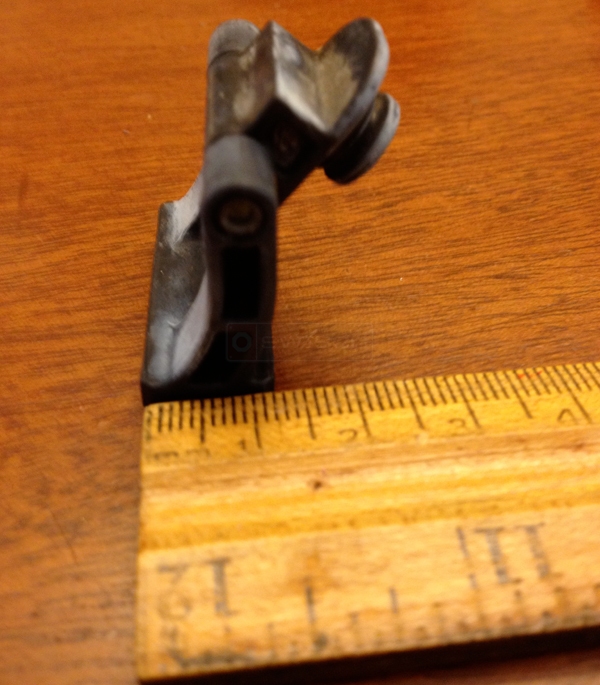

User submitted a photo of a pivot slide assembly.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! The thickness of the base for the 39-536, as shown in your image, is approximately 1/2". Let me know if this information has helped!
A quick learner says:
This must be the right part for my job! I'll place the rest of my order. Will be great to be able to open and close the windows again! Thanks for your help.
Profile picture of Tom
Tom from SWISCO responded:
Not a problem, I was happy to help!
