RE: Reference #7462820

A home owner from Dobbins, CA. says:
The lock lever on the handle no longer stays in position, I would like to replace the handle if possible.
The foot lock mechanism is broken. It screws into the bottom left of the door and the foot slide engages a bolt into the back of the door.

What further information can I provide that would help to locate these parts?

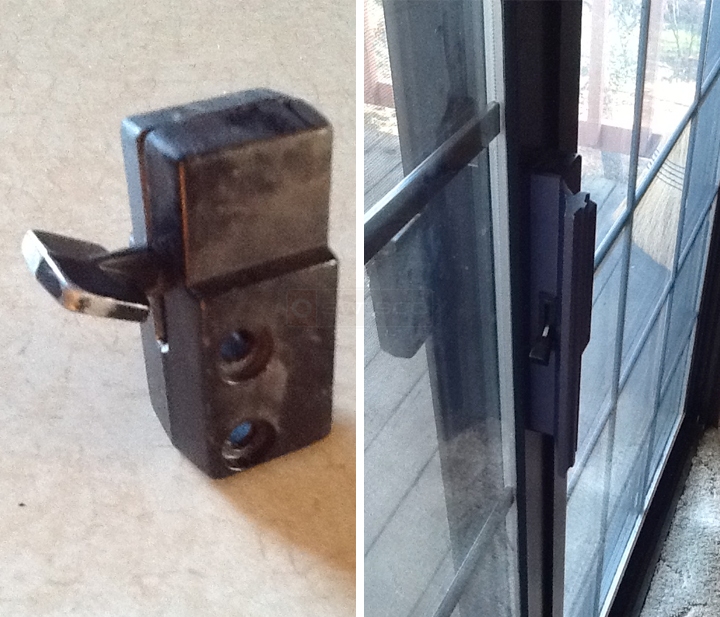

User submitted photos of patio door hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
That foot lock you need looks like our 80-014. Just look it over to see if it will work. As for the patio locking handle, I can't get a good look at it from your photo. My guess is that it might be either something like our 82-005 with a hook type latch or our 82-0090A with a gripper type latch. Take a look and if you are still not sure then send us some more photos of the handle with dimensions. That will help us find something!
A professional from California says:
Judging from the plastic lock retainer on the current handle, 82-005 is the only one I know of that uses that part.
