RE: Replacement window parts

A home owner from Bronx NY says:
August 23, 2016
To whom it may concern,

I need to know if these replacement parts are available and what is the cost for each of them.

Thank You,

John

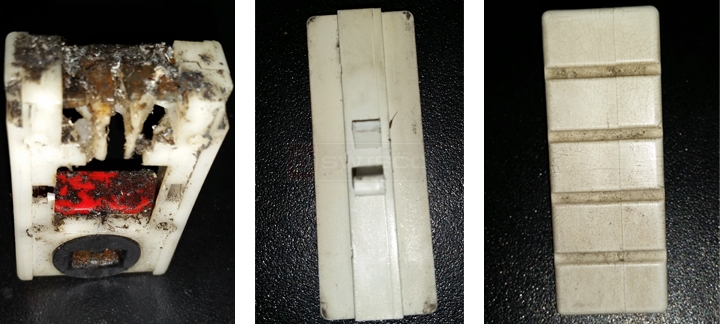

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
August 25, 2016
Hey, John. We may be able to help, yes. Could you give me your dimensions? For the pivot shoe, I will need the width and thickness. For the tilt latch thumb lever, I just need the size and spacing of the installation forks. Thanks!
A home owner from Bronx NY says:
August 25, 2016
Hello Tom,

I just wanted to thank you for the quick response. As for the size of the shoe pivot i have it being 1 1/4 inches wide. 2 inches long. and 5/8 inches thickness.

The thumb latch lever is 3/4 inches wide and 2 inches long. as for the spacing of the installation forks it is 1/4 inch apart from one fork to another.

Tom please let me know as soon as possible for the price of each part. Thank you in advance for your time.

Sincerely,

John
Profile picture of Paul
Paul from SWISCO responded:
August 26, 2016

Thank you! Please see our 15-047, which is 5/8" thick. See what you think. As for the release lever, look at our 26-343. The inside distance between the forks are 1/4".
Thumb Button
Thumb Button
26-343
$0.88
Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-121
$2.37
