REPLACEMENT HANDLES FOR PATIO DOORS

A home owner from Millstone Township, NJ says:
Hello: I have 2 SilverLine sliding patio doors that need the handles replaced. I am hoping that you can confirm that your product 82-035 is the one I need before I purchase. I've attached two pictures hoping that you can see the opening for the lock mechanism, which only has one opening. Thank you.

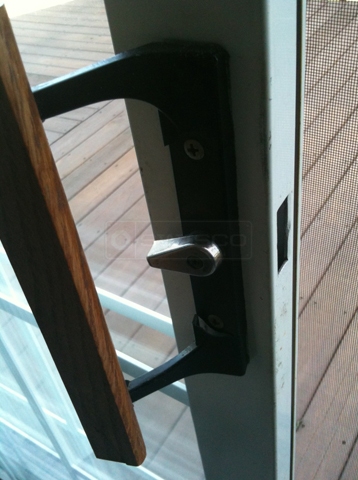

User submitted photo of door handle.
Profile picture of Mike
Mike from SWISCO responded:
From looking at the photos, yours looks a bit more like the 82-003 Sliding Door Handle. What is the thickness of your door? You may need a longer locking spindle, which I believe is no longer available. Do you still have your original spindle? You may be able to reuse it.

Take a look at the 82-003 Door Handle and compare it to your original.
A home owner from MIllstone Township, NJ says:
Thanks for your prompt response. The doors are 1 1/2" thick. I believe the locking spindles are intact and can be re-used on both doors, so all I really need is the handles. I still believe that the 82-035 is a better match because it is also a neutral handle and can be used to open left or right. I need it to open to the left.

Since I am certainly not the expert here, please let me know which one you think I should go with.

Thanks for your help with this!
Profile picture of Dave
Dave from SWISCO responded:
We do not recommend the 82-035 Patio Door Handle Set. The 82-035 does not have a spindle, but only has a turn tab that works in conjunction with the 82-218 Mortise Lock.
A home owner from Millstone Township, NJ says:
Thanks again for your help. Are you then recommending the 82-003? Will it work with a door that is 1 1/2 inches thick? Also, can the 003 open left or right? I need to open to the left. Will I be able to use my lock with it?

Your help is greatly appreciated.
A home owner from MIllstone Township, NJ says:
I am not sure you received my previous email, since I sent from my phone. Can you please tell me if you still think the 82-003 would work for my 1 1/2 inch door? I can reuse the locking mechanism. I just need the handle. It has to be able to open to the left. Do you think that the 82-003 would work?

Thank you for your help.
Profile picture of Paul
Paul from SWISCO responded:
If your original spindle is in good condition you may be able to use it with the 82-003 Sliding Door Handle.

Keep in mind, however, the 82-003 is only meant to go up to 1 1/4" thickness.
