Replacement Balance 26 9 CX CMC 7

A quick learner from Lubbock says:
I have attached some images of the balances I have. The channel is 5/8" wide and 27" long. Do you have something like this or can make it? The stamp is 26 9 CX CMC 7

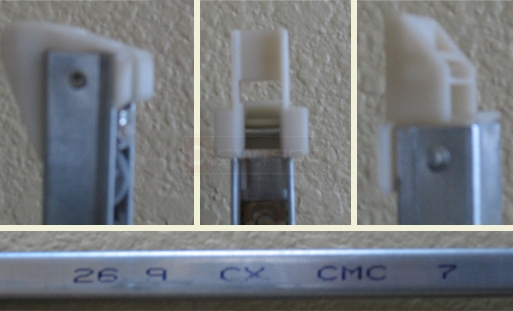

user submitted photo of channel balance
Profile picture of Donna
Donna from SWISCO responded:
Hello,
Thanks for contacting us and posting photos with your discussion.

See our S385 series, 19-005 and 15-004 fittings attached to a 27" x 1/2" side-load channel balance.

We now need to determine the proper stamp option. The stamp refers to the strength of the balance. Please remove the window sash and place it on a scale. We need the weight of the window sash in pounds.
A quick learner from Lubbock says:
The weight of the sash is 32 lbs.
Profile picture of Donna
Donna from SWISCO responded:
Hi,
Thanks for getting back to us with your sash weight.

You will need a S385-27 with a custom made strength to hold a 32 pound sash.

I will email you a custom balance ordering link for (2) 27" balances with a strength to hold a 32 pound sash and 19-005 and 15-004 attached.
