Replacement Channel Balances

A handy person from Chicago, IL says:

Hello,

I had started a thread with you about a week ago and have not been making much progress. I just spoke to someone on the phone and he asked me to resend everything so here it is again:

We are looking for replacement Channel Balances. They are 26" long, 1/2" wide. I've attached photos showing which type of parts they have on each end. Of the ones we have currently some are twisted, some are missing the end pieces, some are missing the metal clip thing. They are all messed up one way or another. So we need to purchase about 16 replacements.

It looks like it might be your "Series 351 Channel Balances", but I am not familiar enough with the attachment/options, parts, end pieces, shoe, clip thing, ?? etc., to know that I am ordering the right thing.

Your help will be very much appreciated. Thank you.

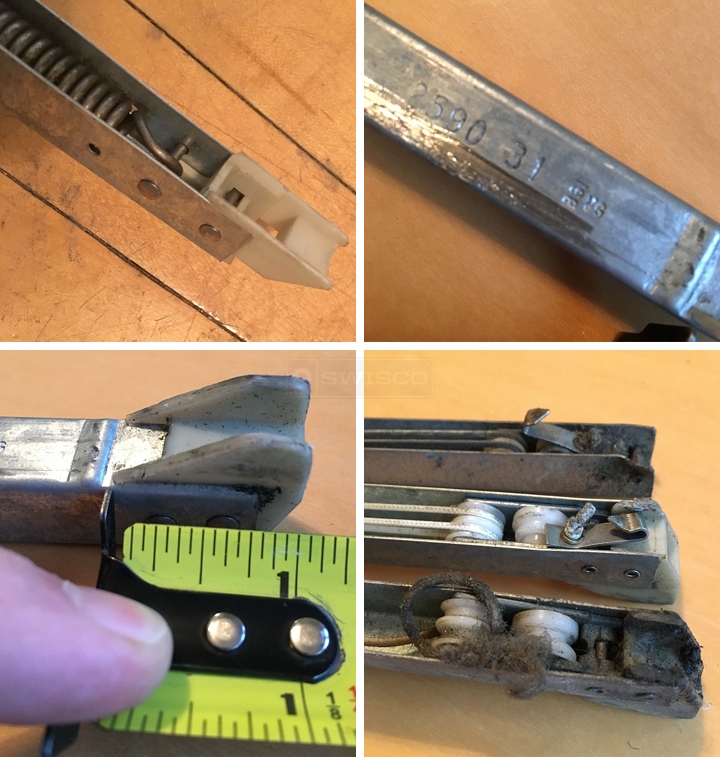

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
If the depth of the balance bottom shoe is 1", then I recommend our S351-26. If the bottom balance shoe depth is 1-1/8", then consider our S390-26 instead. In either case, the spring strength option will be the 2565 for a sash weight range of 30 through 33 pounds.
