Replacement Cover & Handle Needed

A quick learner from Montgomery, Alabama says:
I need one left-handed cover and one handle for a casement operator window. I've attached a photo of each from an existing window. The only markings I see are on the back side of handle I have. The numbers 13 45054 are seen. I believe the finish is pewter or bronze.

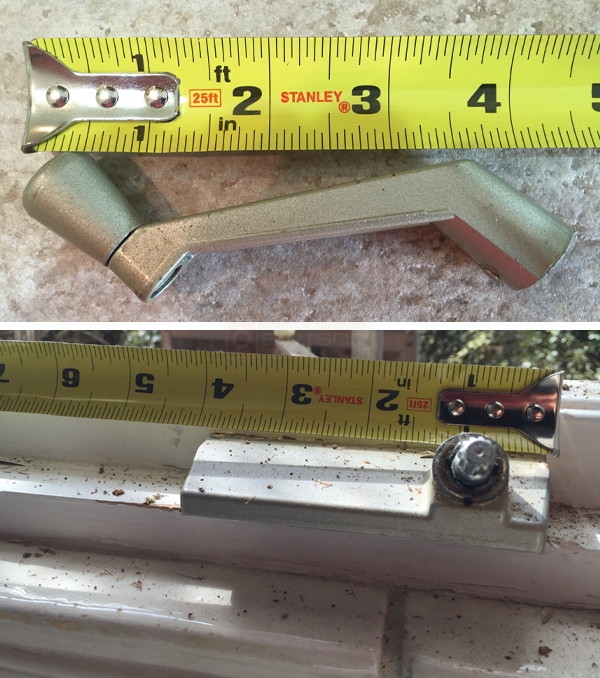

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for contacting us. Our 39-114L handle may be a match for yours, though you would have to confirm that the spline is 11/32". As for the cover, I don't think you will be able to find a cover by itself for this style operator. Based on what I can see, your style operator has the cover built in, which means it cannot be replaced.
