Replacement Crank

A home owner says:
I'm looking for a replacement crank - dimensions are 3.5" x 2.5" with a 5/16" core. The replacement is preferably foldable. Thanks for your help!

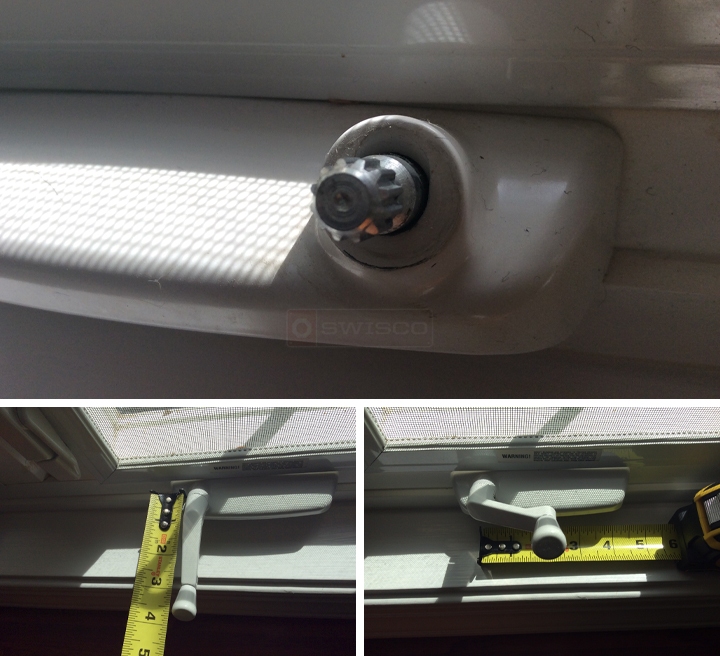

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting. I can see the base clearly enough, but in order to identify this operator I will also need to see the arms that push the window open. It would be even better if we can see the operator removed from the window. Let me know!
A home owner says:
As requested, additional pictures attached. Thanks for your help.

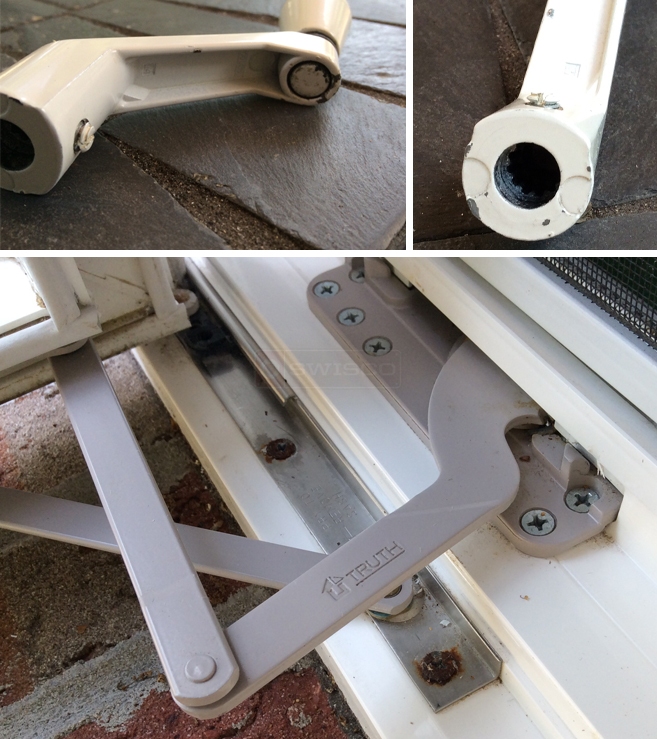

User submitted photo of their window operator.
Profile picture of Tom
Tom from SWISCO responded:
I think I might have been confused. I assumed you were looking for the whole crank operator. Are you just looking for the handle? If so, see our 39-114L for a possible match. Just make sure the spline is the same size at 11/32".
