Replacement Marvin Part

A handy person from Fort Worth, Texas says:
October 30, 2014
We bought this house a few months ago, so I don't know the age of our Marvin windows but i don't think they are terribly old. One of our cranks is stripped and I'm wondering if you can help me identify and sell me the part that needs to be replaced. The portion that seems to be stripped is the end of the silver shaft where it makes contacts the horizontal gears - I hope that makes sense. Thanks for any help you can provide.

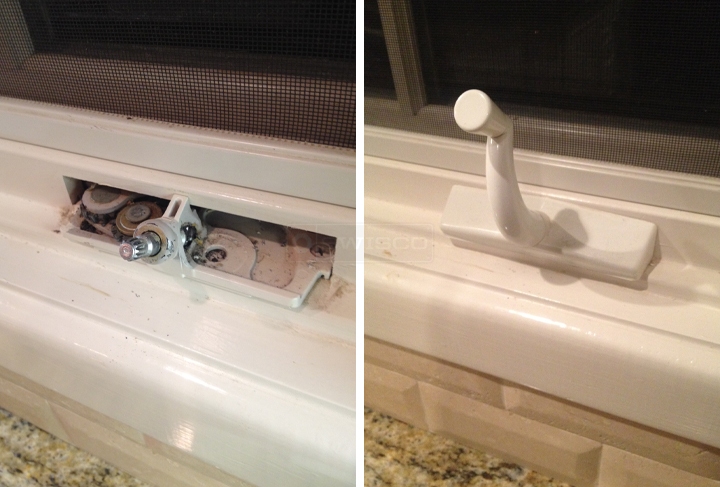

User submitted photos of a window operator.
Profile picture of Paul
Paul from SWISCO responded:
November 3, 2014
Sounds like you need a new operator. I cannot say for sure what you have without seeing the entire operator (your pictures only show the base), but start by looking at our 39-031 and 39-032 and see how well they match your hardware. These are popular with Marvin windows.
A quick learner from Fort Worth, Texas says:
November 3, 2014
Is it possible to only replace the silver shaft (that the crank fits on to), rather than the entire operator or base? It seems that the shaft is the only part that's stripped. Thanks
Profile picture of Tom
Tom from SWISCO responded:
November 4, 2014
I'm afraid not. It is not sold separately since it is machine-pressed into the operator at the factory. If it has stripped, then that means the other gears have stripped, as well.
A quick learner from Fort Worth, Texas says:
November 4, 2014
Thanks. If I remove the entire operator and send you a picture would you then help me determine which model would be the appropriate replacement?
Profile picture of Tom
Tom from SWISCO responded:
November 4, 2014
Yes, that will help us a lot. You may not even have to remove it, however. Showing us the arms when the window is open would also help, if that's easier.
A quick learner from Fort Worth, Texas says:
November 9, 2014

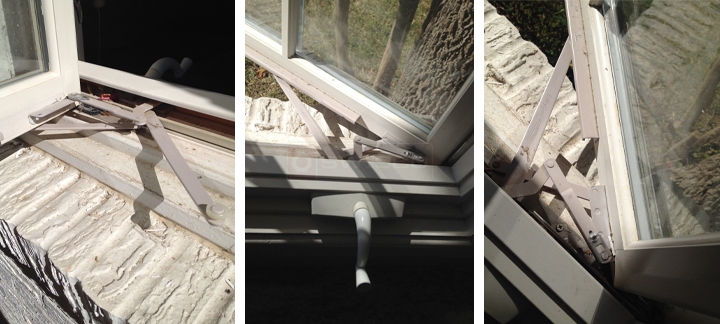

Here are 3 photographs of the arms with the window open. Do these help identify which replacement would be correct?
User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
November 11, 2014
Thank you! Yes, I think Paul's recommendation still stands. Just make sure the dimensions match up.
A quick learner from Fort Worth says:
November 11, 2014
Thanks, but which one 39-031 or 39-032?
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
November 13, 2014
It looks to me like our 39-031, but you will need to carefully examine our pictures to be sure. Check the orientation of the gears and the arms, especially.
