Replacement Window handle crank 45012

A quick learner from Mount Vernon, WA says:
Need one clay colored window handle crank stamped US Pat 4.083.264 Can. Pat. 1979 45012. Non folding. Round (non notched) opening is 11/32". Fitting into a square: Length is 3 1/16". Height to center of round opening is 2 1/4 ".

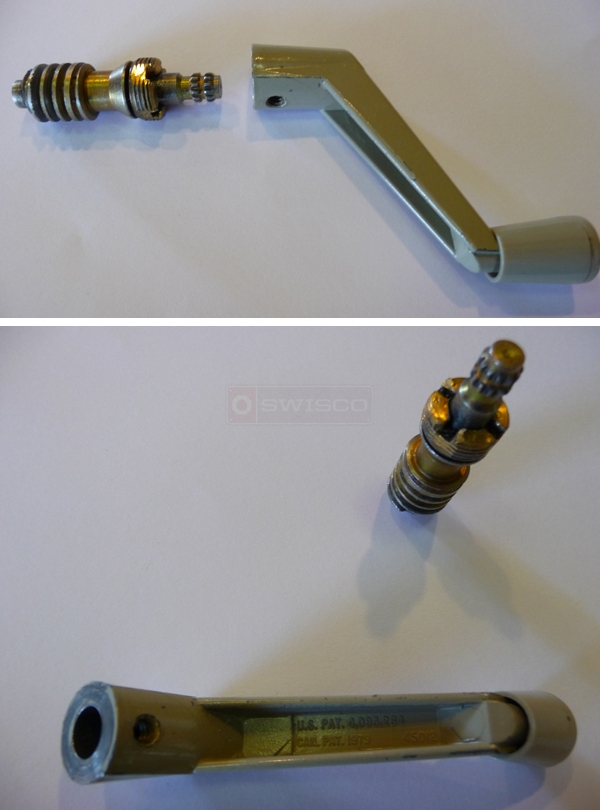

User submitted photos of a window operator.
A quick learner from Mount Vernon, WA says:
The 2nd item in my pictures has come out of the operating mechanism. Does that item need to be replaced or can it just be reinserted into the operating mechanism?
Profile picture of Tom
Tom from SWISCO responded:
Yes, if that gear has come out of the operator then the whole thing needs to be replaced. Please take a few pictures of the operator removed from the window and we can work from there.
A quick learner from Mount Vernon, WA says:
Because of the location of the window, I will need to have a replacement operator ready to install upon removing the old one. Hopefully you can ID the parts needed.

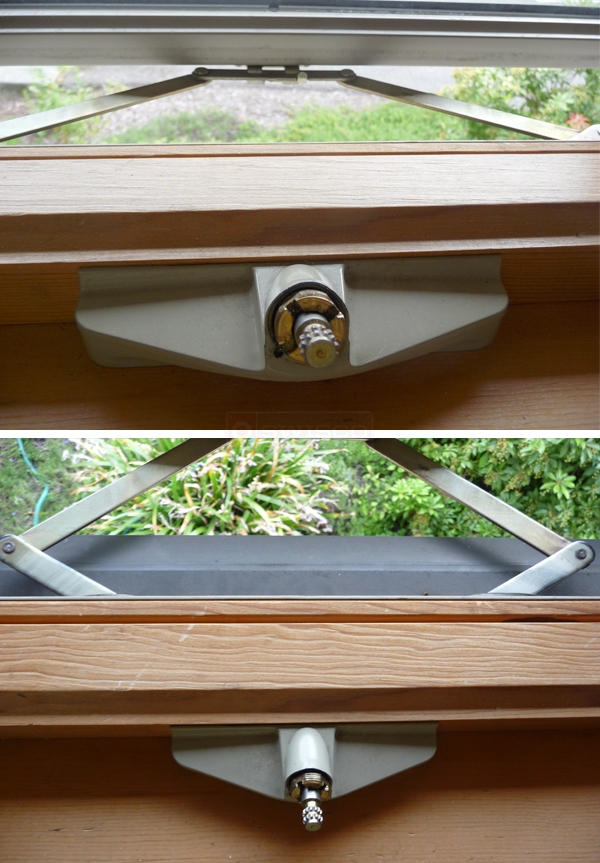

User submitted photos of a window operator.
Profile picture of Paul
Paul from SWISCO responded:
Perfect. Check out our 39-083 or 39-140 and see if either of these could work for you. For the handle, see our 39-114L.
