Replacement channel balances 29 6 CW CMC 10

A handy person from Naples Florida says:
I need to replace some window balancers. The number printed on the window balancer is 29 5 CW CMC 10 and the other window balancer is marked 29 6 CW CMC 10. The metal channel from end of metal to end of metal measure 30" on both of these window balancers. Also, the bottom plastic guide measure 1 1/8" just like the one pictured on this web page 15-001. Depth of metal channel side view is 5/8". The both metal edges of channel are rolled over. Also I hope you can help me out and advice me where I can buy these window balancer and who make them.

Thank You

Fotis

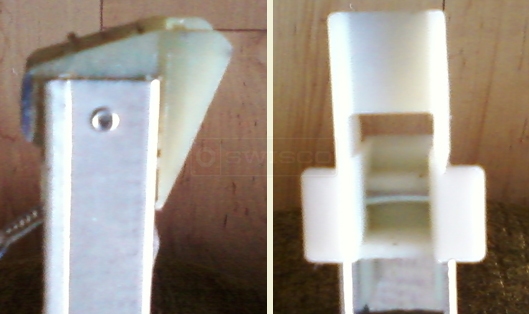

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! With a 19-005 top attachment and 15-001 bottom attachment, you need our S395 series channel balance.

For the balance stamped 29 5 CW CMC 10 you need S395-30 with the 2950 option.

For the balance stamped 29 6 CW CMC 10 you need S395-30 with the 2960 option.

Let me know if you have any questions.
