Replacement door lock

A handy person from Brookfield, WI says:
I think this is a Kolbe & Kolbe.
See the attached image from the number on the side of the door.
Need replacement lock as the lever no longer moves the lock mechanim.
Thanks.
ps my son's patio door - I can get measurements if required

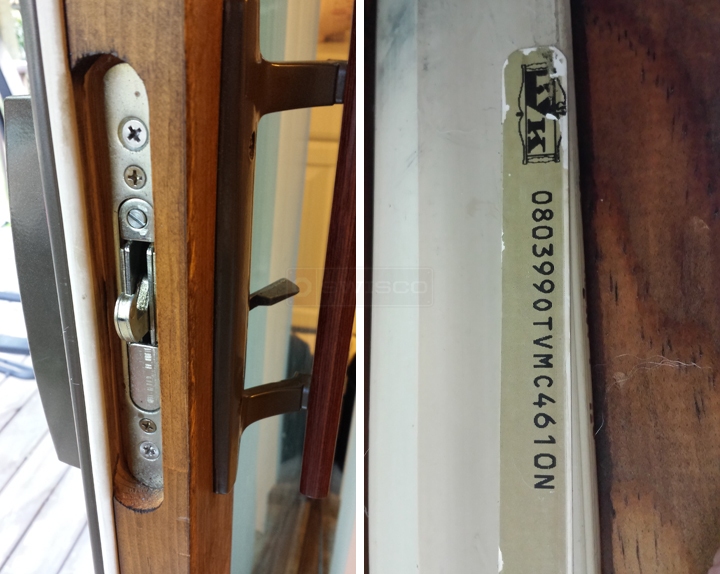

User submitted photos of patio door handles.

K/K 0803990TVMC4610N
Profile picture of Tom
Tom from SWISCO responded:
This looks like our 82-226. Check it out and see if you agree. I do recommend that you double check the dimensions.
A quick learner from Brookfield, WI says:
Both my son and I measured the existing lock
For the same dimensions on each lock:
82-226 = 4 5/8"
Our lock= 4 1/4

82-226 = 6 1/8
Our lock= 6 1/4

Is there another option or is this close enough ?
Please advise.
Thanks.
Profile picture of Dave
Dave from SWISCO responded:
We couldn't find anything with those exact dimensions. You may be able to just change the inside portion of the mortise lock and use our 82-218 in its place. What is the distance between the two inside screw holes?
A professional from California says:
It's wood. Make new holes. 1/16 less at top and bottom won't matter.

Even better, use 82-227 and the holes won't even be close.
