Replacement for DSI 22C

A quick learner from Broomfield, CO says:
Trying to replace channel balances in double hung windows. Existing spring balance is DSI 22C TO. The plastic piece that inserts into the base of the channel that holds the round metal piece (that secures the window brackets).

Also the window brackets are spring loaded. Not sure what the procedure is for installing the window back into place.

Any help is appreciated.

Many thanks,
Charles T - Primrose School at The Flatirons

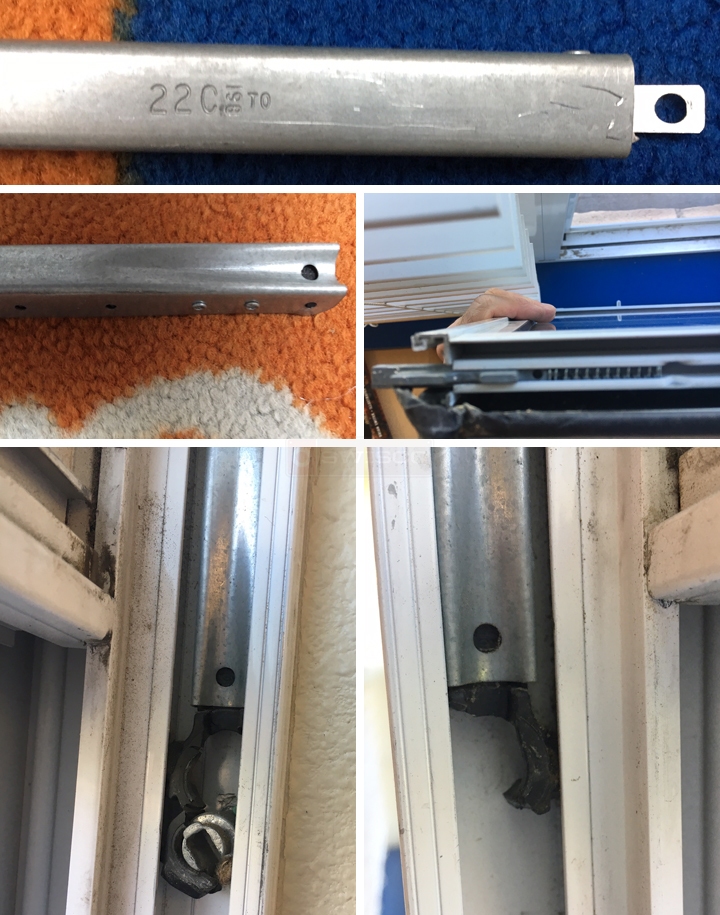

User submitted photos of a window balance.
A quick learner from Broomfield, CO says:
The channel is 9/16 and the space for the round bracket that receives the window is about 11/16".
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting, Charles. This looks like an older version of our S795-22 channel balance. Check it out and let me know what you think. Keep in mind this comes with a 1-1/4" wide shoe by default. If yours is smaller, please let me know.
A quick learner says:
The shoe channel is 11/16
A quick learner from Broomfield says:
The shoe needs to be between 11/16 & 13/16 wide. Is there an alternate solution?
Profile picture of Paul
Paul from SWISCO responded:
Can you double check? They only make these shoes 1-1/4" wide or 1" wide. I've never seen one that is 1-1/16".
