Replacement part certainteed window.

A handy person from USA says:
February 24, 2015
Hi I would like to order parts for the certainteed window in the picture . The number on the coil is 405 LK . Could you call me so that I order everything I need . My window was not staying open .

Thank you,
Mary Ann

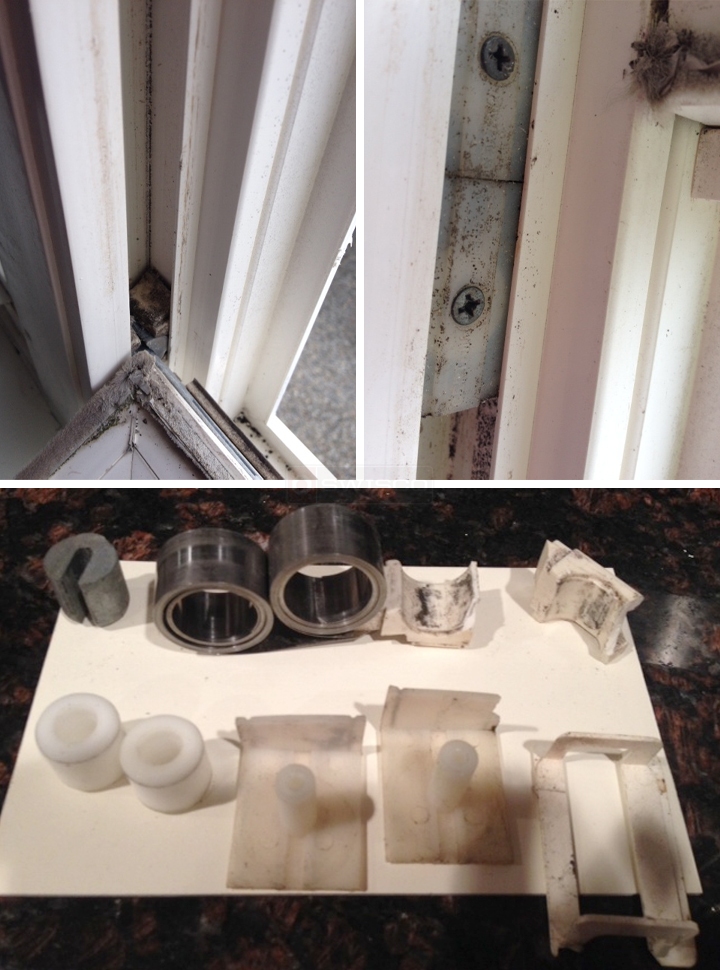

User submitted photos of a coil window balance.
Profile picture of Paul
Paul from SWISCO responded:
February 25, 2015
Hey, Mary Ann. You're looking for individual parts for a coil balance system. Fortunately, each component is sold separately and you only need to replace what has broken. This should make things a lot easier!

First, see our 15-192 pivot shoe, which appears to match your old broken one. If you also need new springs, see our S171-405, but you may just need the shoe. Everything else looks to be reusable.

All orders can be placed online directly on our site. Let me know if you have any other questions!
405 Series 171 Coiled Balance Spring, Long
405 Series 171 Coiled Balance Spring, Long
S171-405
$6.55
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
