Replacement pivot shoes

A professional from Hanover, PA 17331 says:
I am in need of replacement pivot shoes-minimum quantity needed is 20. See uploaded pictures.

The dimensions appears to be:

1/2" Thick (Could be 9/16" depending upon where measured)
7/8" Wide
2 1/16" High

Please let me know the replacement number and availability. If exact replacements are not available, please tell me a substitute part number and availability.

Brad

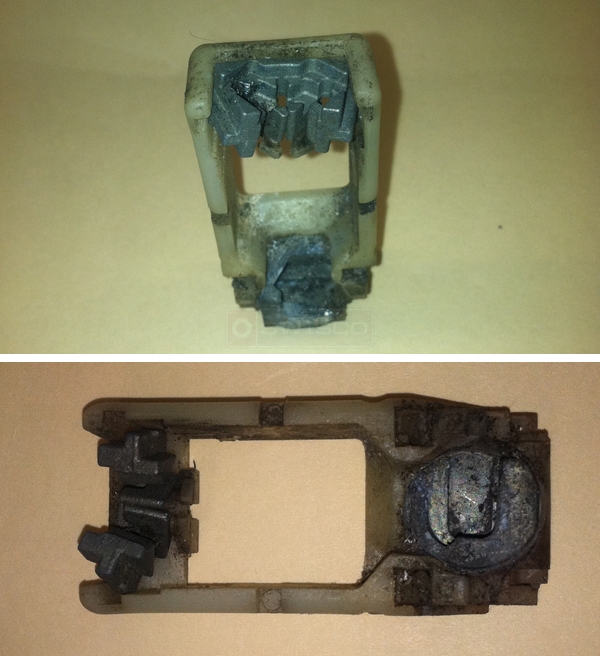

User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
Hey, Brad. Take a look at our 15-188. This appears similar, however you should confirm your width. Check out the dimensions of our 15-188 to see the appropriate spot to measure width.
A professional from Hanover, PA 17331 says:
Thanks for the reply Tom. Your suggestions looks close but the width dimension is too wide. However, when I double checked my dimensions again, I realized I made a mistake. The dimensions should be:

1/2" Thick
1" Wide
2 1/16" High
Profile picture of Tom
Tom from SWISCO responded:
Hmm... how about our 15-167? Do you think this would be a better match?
