Replacement storm/screen door panel clips

A from Salem MA says:
No names or markings are visible on the part, but I have included all dimensions as well as photos of the clip installed and removed. The original part was supplied by the manufacturer of the storm/screen door, but they are no longer in business.

I am looking for replacement clips that will be made of hard plastic or non-corrosive metal that fit these dimensions and will not crack or split under stress. The color is to be white.

I look forward to your recommendations
Thank you,

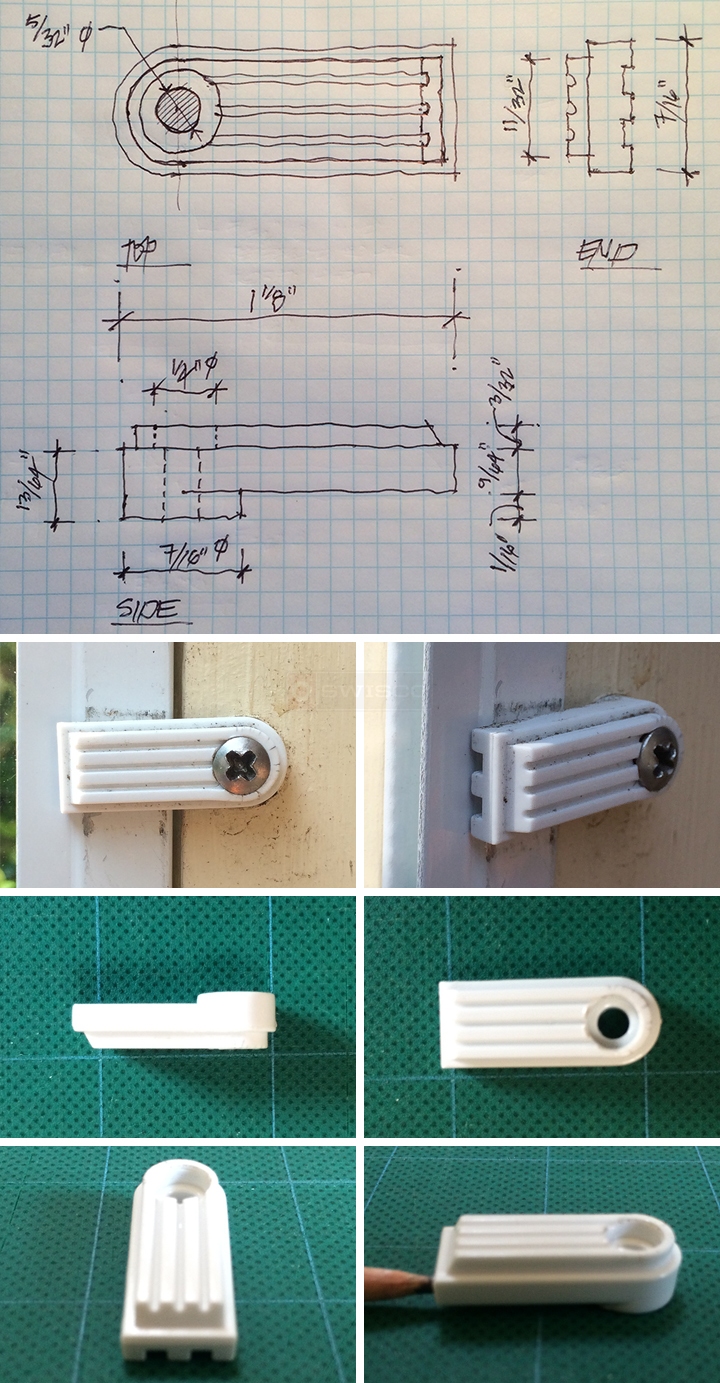

User submitted photos of storm door hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for submitting such clear and helpful images. Now, we have a couple possibilities for you. Our 70-080 white nylon clip is one; it is 1-3/4" long with an offset of 1/8". Yours is 1/16", but since the 70-080 is nylon you can file down the back end (which is 3/8" high) to make up for the difference.

The second is our 70-106 aluminum clip. You would have to be paint these white, but it is 1-3/8" long and the offset is also 1/8".
