Sash Balances for Bonneville Windows

A home owner from Vermont says:
May 12, 2015
I want to make sure that your 33" Series 751 Channel Balance is the correct product for our windows. We have Bonneville double hung tilt and wash sashes from 2004. Each sash weighs about 28 lbs, so I am thinking of the 32 HD (as indicated also on the stamp on the original balance.

It looks like it will work, but can you verify that?

Many thanks.

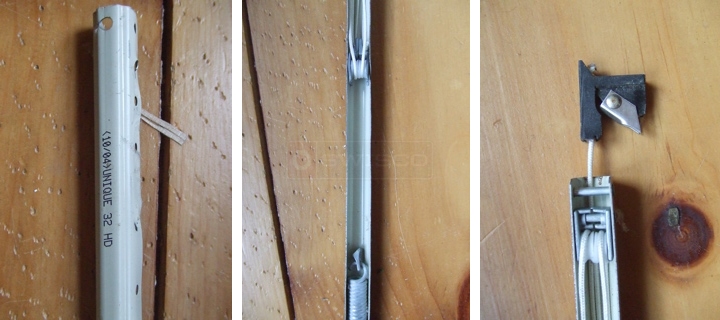

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
May 14, 2015
Yes, I agree. Our S751-33 appears to be the best match. I would also recommend the 32HD option.
A home owner from Vermont says:
April 19, 2016
Thank you. These work perfectly and they are higher quality than the originals. The springs are more flexible so the sashes go up and down more easily than ever and they seem like they will last longer. We are very satisfied and will be purchasing more soon to replace the originals, more of which have now broken.
A home owner from Elora, Ontario says:
September 24, 2018
Found this post. I too have Bonneville windows from about the same year. Mine are slightly smaller: lower sash weighs 22.5 lbs, length of the channel balance is 28". Unlike the one in the photo, there is no ID or model number stamped on mine--took some time to determine they were Bonneville, but I have verified they are. All details in the photos above match perfectly.

Can you sell me something that is in my size?

much thanks

Paul
Profile picture of Tom
Tom from SWISCO responded:
September 27, 2018

Hi there- thanks for posting!

Given the information that you've provided, take a look at the S751-28 with a stamp "option" of 27HD. Just go over the measurements and details before purchasing to make sure this is the right replacement.
28" Series 751 Channel Balance
28" Series 751 Channel Balance
S751-28
$11.73
33" Series 751 Channel Balance
33" Series 751 Channel Balance
S751-33
$12.27
