Hello I recently purchased your part #
83-002. My fault it doesn't fit. The previoulsy drilled screw holes don't line up with the

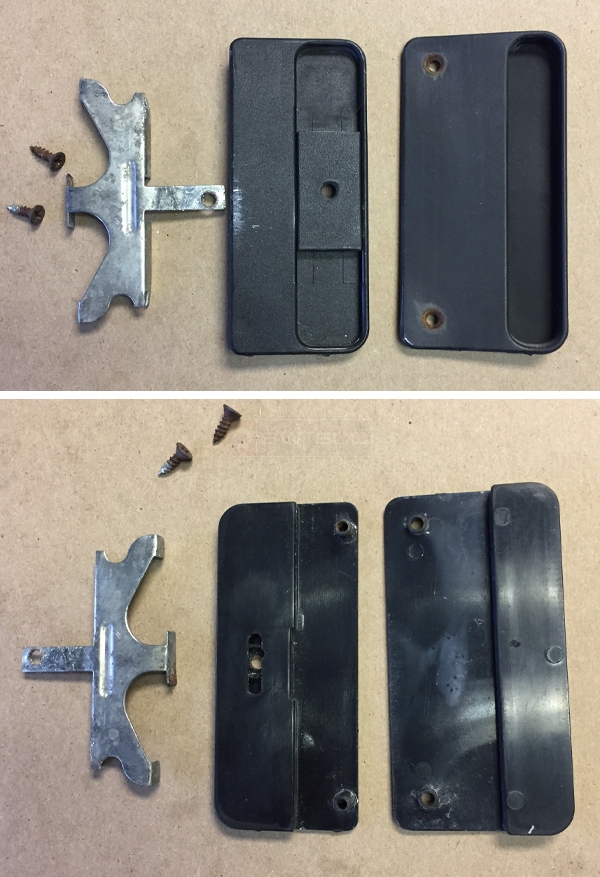

83-002 and there's no protrusion where the screw attach. Please see the photographs. My old locking handle dimensions are as follows.
Locking side = 1 3/4" wide and 4" tall.
Pull handle side = 2" wide, 4" tall and screw holes are 3 1/4" apart from center hole to center hole.
The holes already drilled into my existing door frame are somewhat larger to accomodate the protrusions from the holes in the handles. That's why the holes are larger, see pictures. Any advice on what to purchase?
Thank You,
Robert
