Screen Pin Identification

A contractor from Ridgefield, Connecticut says:
Can you help me identify this screen pin? I'd like a higher quality replacement if possible.

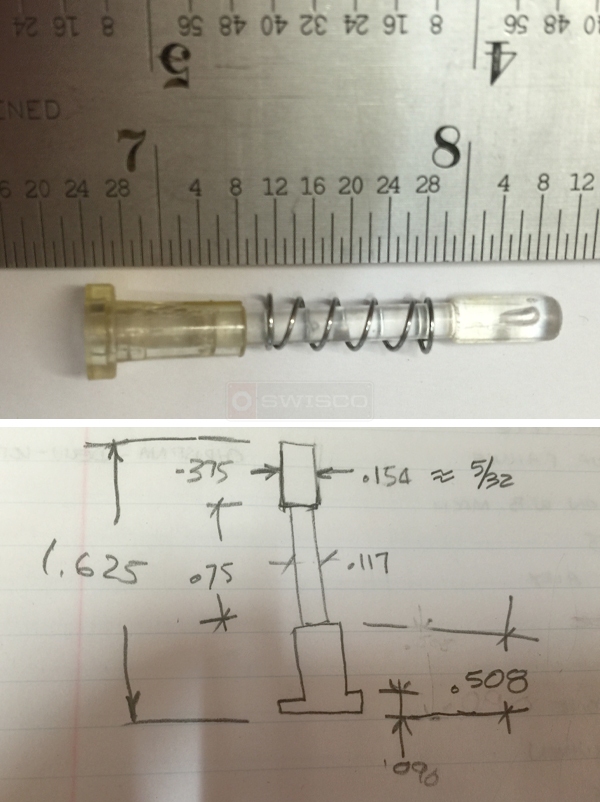

User submitted photos of a screen pin.
Profile picture of Paul
Paul from SWISCO responded:
See our 70-009 and let me know if this is a possible match.
A quick learner from Ridgefield Ct says:
That would be my guess, but I can't find any dimensions other than the 5/32 bottom diameter and the 1-1/2" overall length. I assume that since the suggested drill bit is 1/8" on the small end, that the pin shaft is the correct size. I don't know anything about theses things, and what is important, and what isn't.


Profile picture of Tom
Tom from SWISCO responded:
The dimensions we show on our site are the most essential ones. Judging by what we show, could you use the 70-009 as a replacement pin?
