Searching for 49001

A quick learner says:
I saw a picture on the internet that was from your site. I was able to match up the PAT #'s on the back of the window crank I have but now can't find the part on your website. I don't know what kind of window it is but there are two PAT #'s. PAT 4,083,264 and PAT 4,189,248

There is also a number near the tip of the crank - 45001
Profile picture of Tom
Tom from SWISCO responded:
Could you show us a few pictures of your part? Patent numbers tend to cover a wide range of products, not just one, so they're not ideal for identification. If possible, I'd need to see your part removed from the window. I will also need your measurements.
A quick learner says:

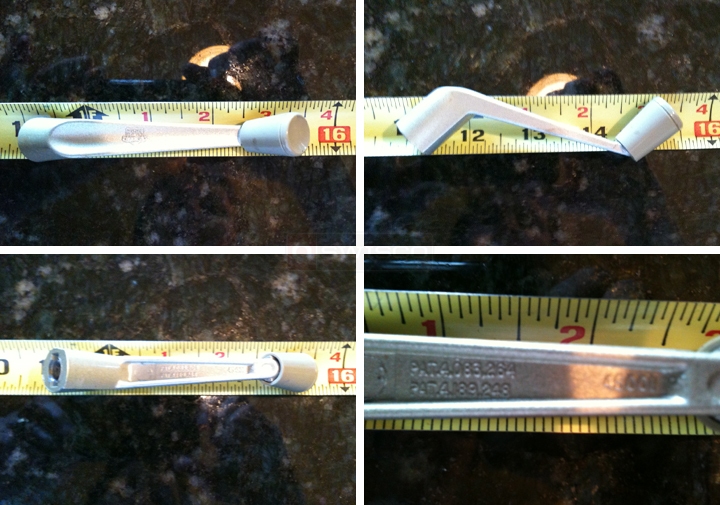

Attached are 4 photos of the part
User submitted photos of a window operator handle.
Profile picture of Tom
Tom from SWISCO responded:
Perfect, thanks. It looks like you have a version of our 39-114L. The shape may be a little different, but as long as you have the same 11/32" diameter spline it should still work. We also carry a fold down version, our 39-205.
A quick learner says:
Before ordering I need to determine if I have the 11/32" diameter spline. What is the spline?
Profile picture of Tom
Tom from SWISCO responded:
That would be the hole in the handle that fits over the operator stem.
Alternate view of the gear hole
