A quick learner says:
Need 7 pairs of spring assembly retainer clips. The plastic broke on the retaining clips. The window feel. I want to replace all retainers. Label on window is H-LC30-53x78. House built in 2002 using aluminum Kinco windows. Can take measurements if you need them.
User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
The clip in question is known as a top sash guide. We can help you replace it, but I cannot identify what it is based on this picture. If possible, please show us one that is undamaged and we can try to find a good match. Please also give us its dimensions.
A quick learner from Port Orange FL says:

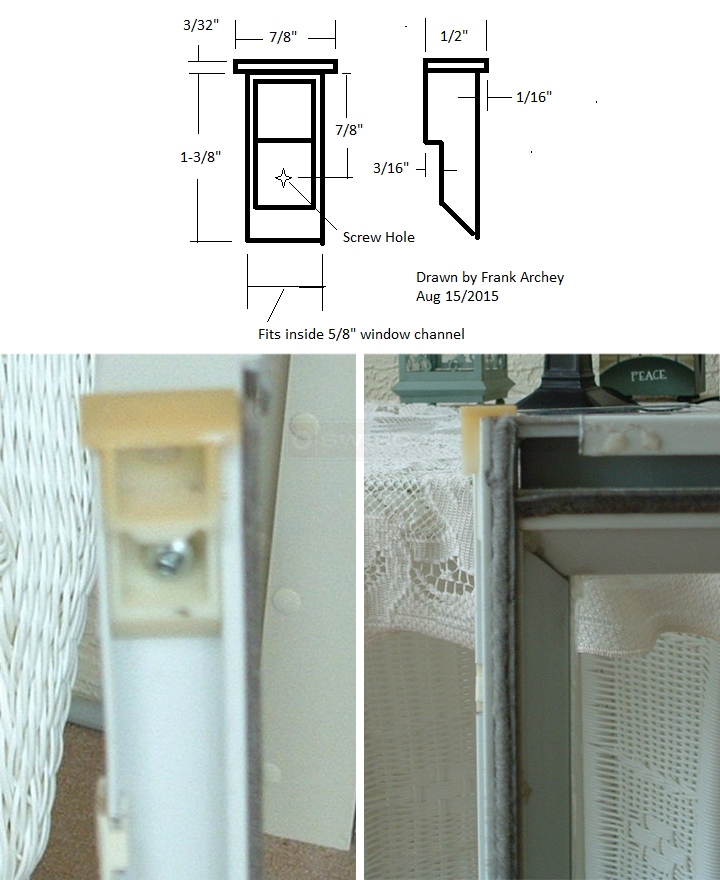

I now have dimensions plus more pics of the top sash guide.
User submitted photos of a top sash guide.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for the clear pictures and drawing! I recommend our 18-166 top sash guide. See what you think.
A quick learner from Port Orange, FL says:
I agree and have placed an order for qty 14 of that part.
Thanks for your help.
Frank
