Silverline window part needed

A quick learner from Bluffton, SC says:
Need to replace a broken part off of a Silverline window that is about six years old. It is where the window pivots at the bottom for cleaning and where the closer bar connects in to the window pivot. Thanks!

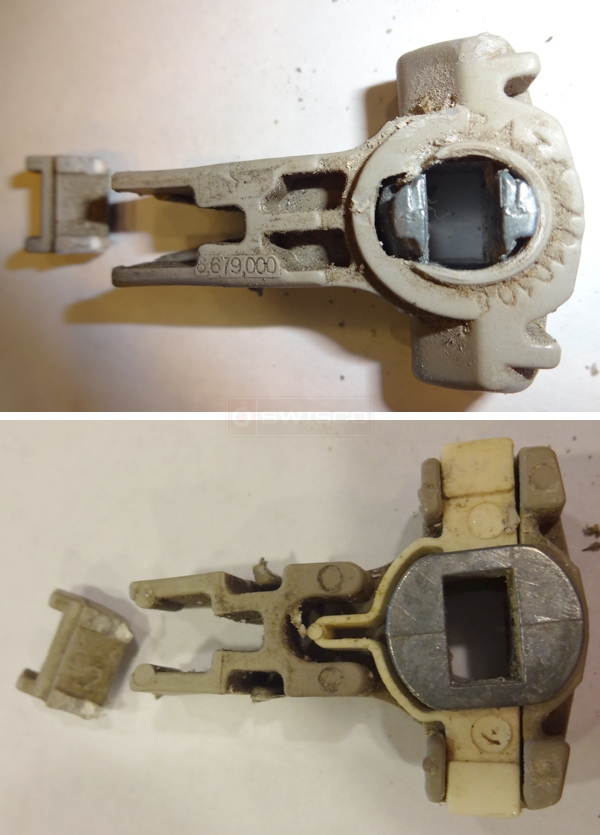

User submitted photos of a pivot shoe.
6,679,000
Profile picture of Paul
Paul from SWISCO responded:
This is the shoe for our Series 795 channel balance. See our 15-195. Since the shoe broke, however, you might want to consider replacing the whole balance. The springs might not last that much longer if your shoe broke.
A quick learner says:
thanks for the quick response. Will replace the balance, but not sure what length to order. The metal piece itself is 33 inches long but when you add in the shoe it comes to 34 inches long. Do I order the 33 or 34 inch one? Stamped on the balance is 32-3 BSIN so wasn't sure which one to get. Thanks!
Profile picture of Tom
Tom from SWISCO responded:
Only the metal channel is measured when determining length, so 33" is what you want.
A quick learner says:
thanks, does the 32-3 BSIN give you an idea whether to purchase the A, B, C, or D one? The window is double paned and measures about 29 inches wide by 35 inches high.
Profile picture of Tom
Tom from SWISCO responded:
32-3 might correspond to 32C, but you may want to weigh your sash just in case.
